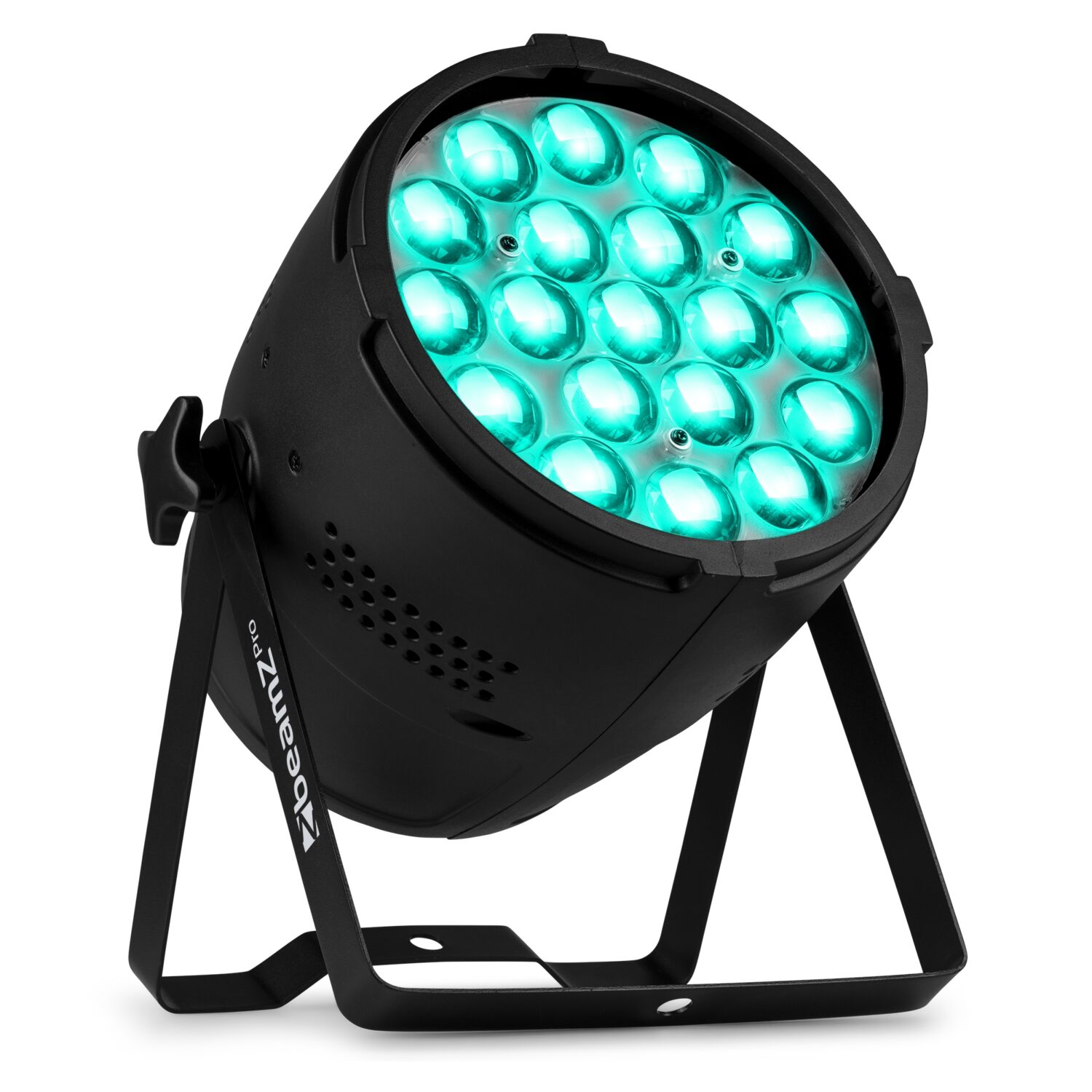

BAC552Z Aluminium PRO PAR Zoom RGBW LEDs

151.511

19x 15W 4-in-1 LEDs
RGBW colour mixing
Motorized zoom
Zoom range: 8° – 35°
3 separate controllable LED zones
0-100% electronic dimmer
Lightweight aluminium housing
Low noise and efficient cooling system
DMX and Stand-alone mode
Master/slave function
DMX in/output via 3-pin XLR
Pre-programmed shows
Sound activated with adjustable sensitivity
Auto mode with adjustable speed
Control panel with LED display
P-Con input/output
Double bracket also acts as floor stand

Specifications

Specifications
Description
Videos
Download & links

Product colour	Black
Light source	4-in-1 LED
Colours	Red, Green, Blue, White
LED power (single LED)	15W
Quantity of LEDs	19
Beam angle: Min	8°
Beam angle: Max	35°
Field angle: min	15°
Field angle: max	58°
Illuminance	96.513 lx @ 1m
Flash rate per second	1 - 23Hz
DMX channels	10, 18
DMX connection	3-pin XLR
Modes	Automatic programs, DMX, Master/Slave
Cooling	Temperature controlled fan
Display	LED
Power plug	P-Con
Power consumption	2.69 - 1.44A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	250 x 270 x 320mm
Weight (kg)	4.3000
Included accessories	Mounting bracket, Power cable

The BAC552Z is part of a new generation of Pro LED PAR effects, designed for different purposes such as stage and architectural lighting. It can be operated via various DMX settings in 3 separate controllable LED zones. Due to the colour technology, this light has 19 LED modules with big lenses, so you have the ability to mix any colour! The BAC552Z features an 8° – 35° zoom angle, enabling the fixture to have fantastic beam or wash effects. The extra Power Connector output enables you to simply link the power of multiple units together into a single socket.
