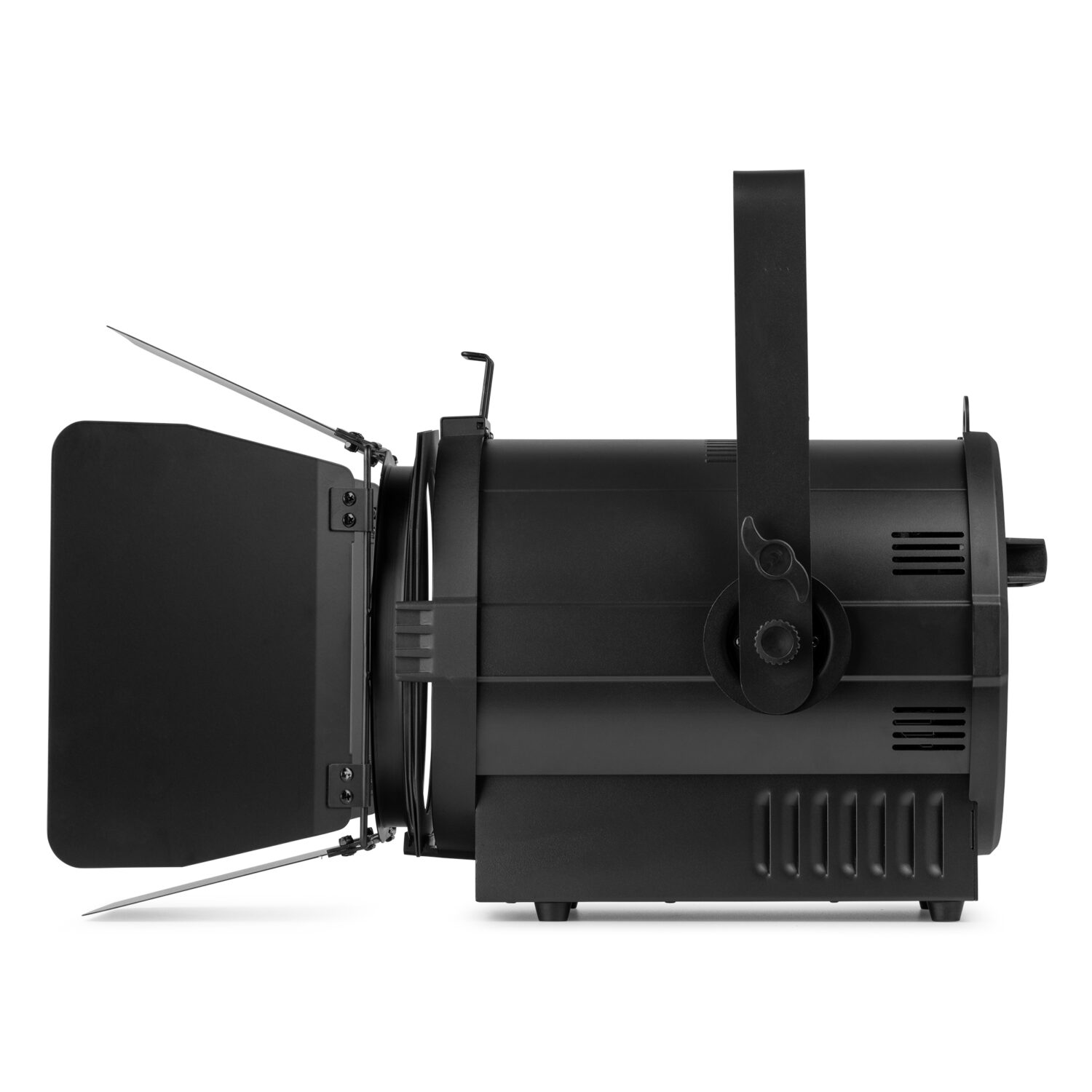

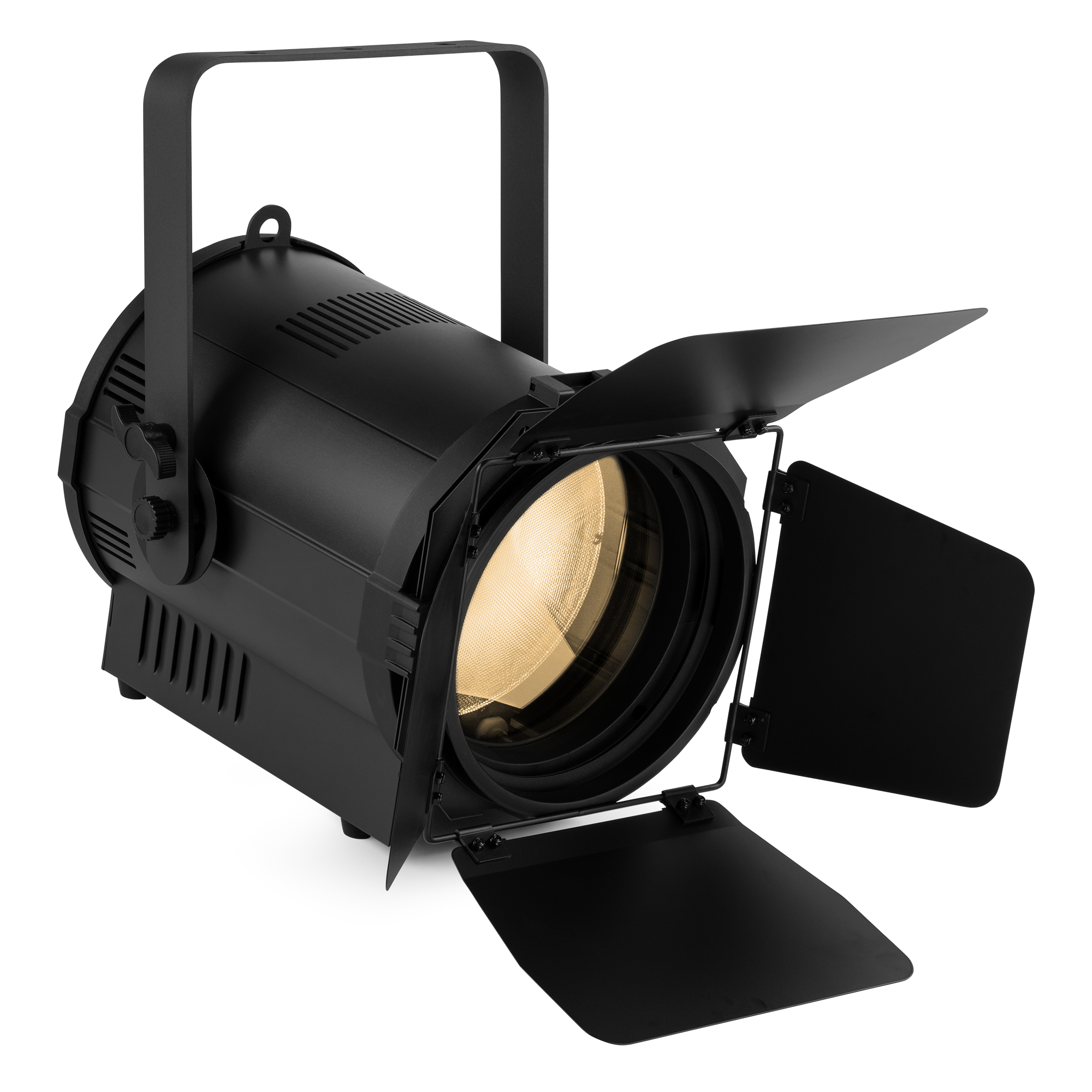

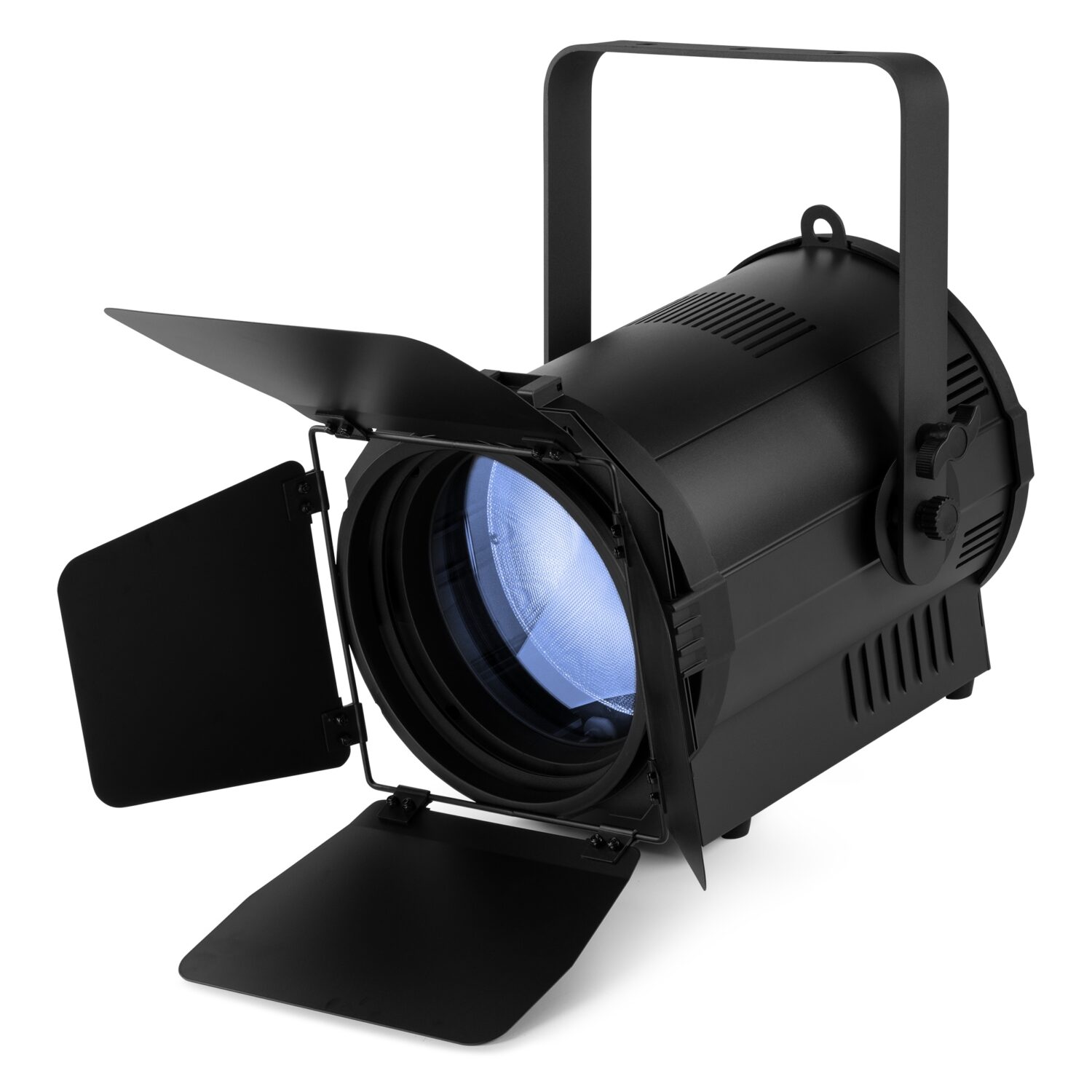

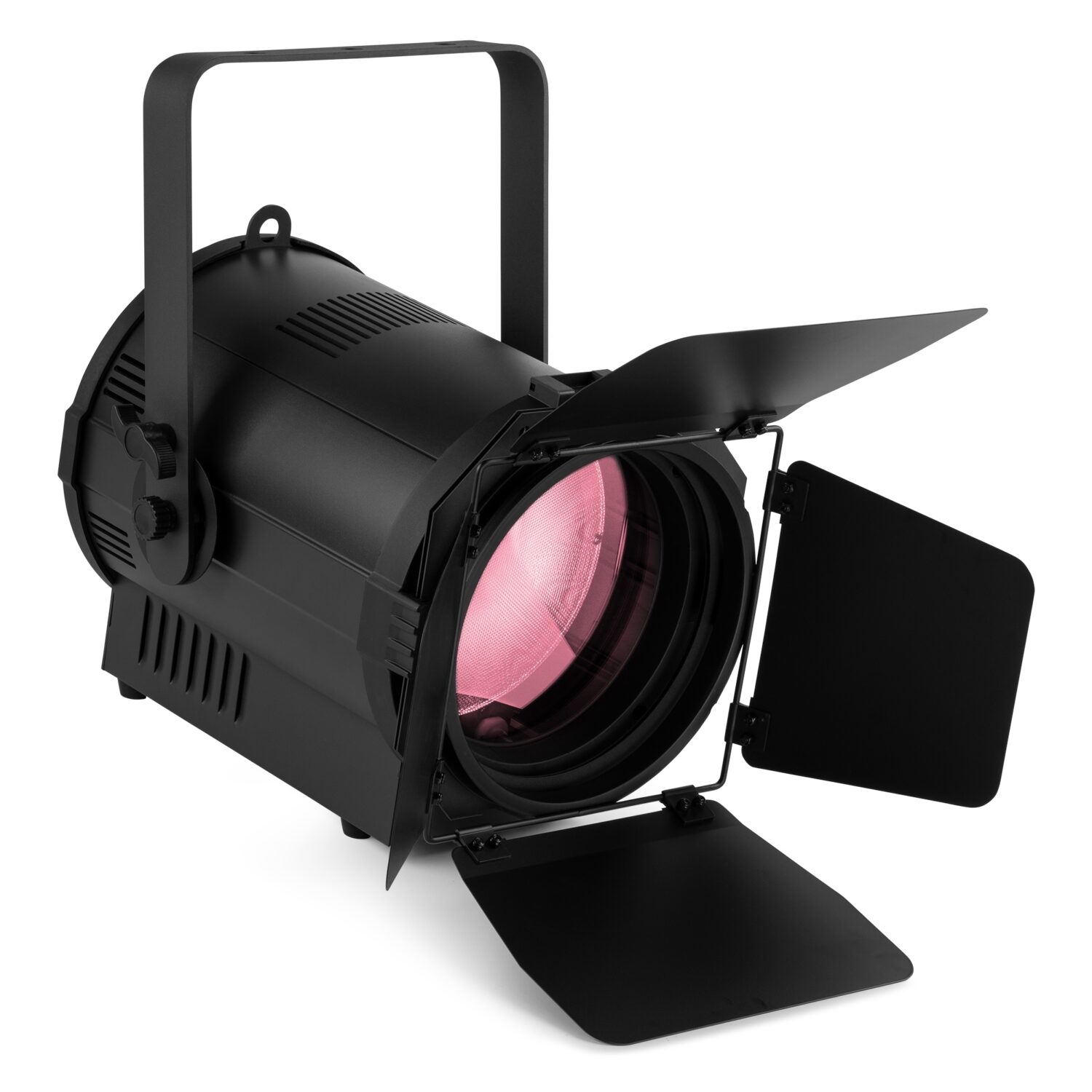

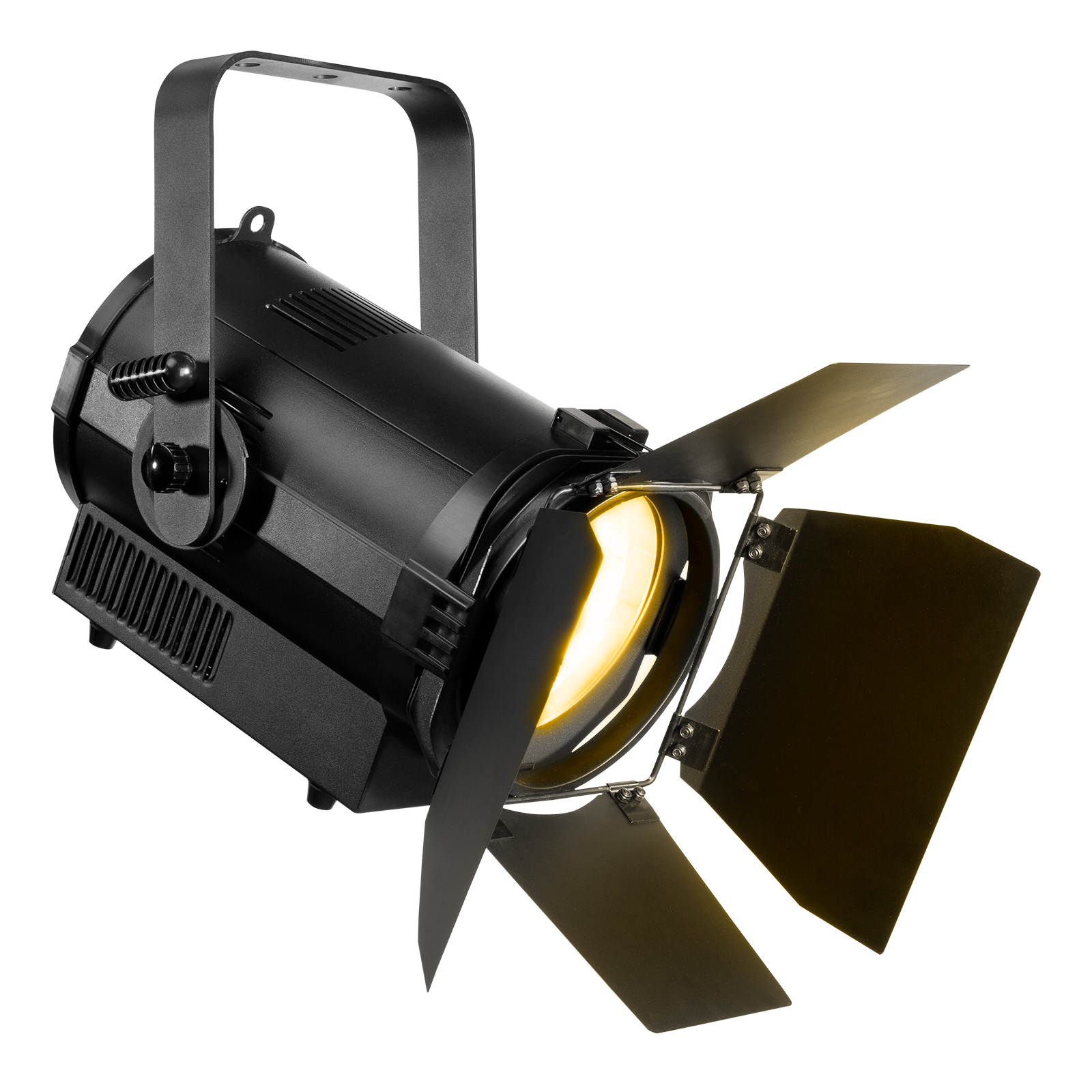

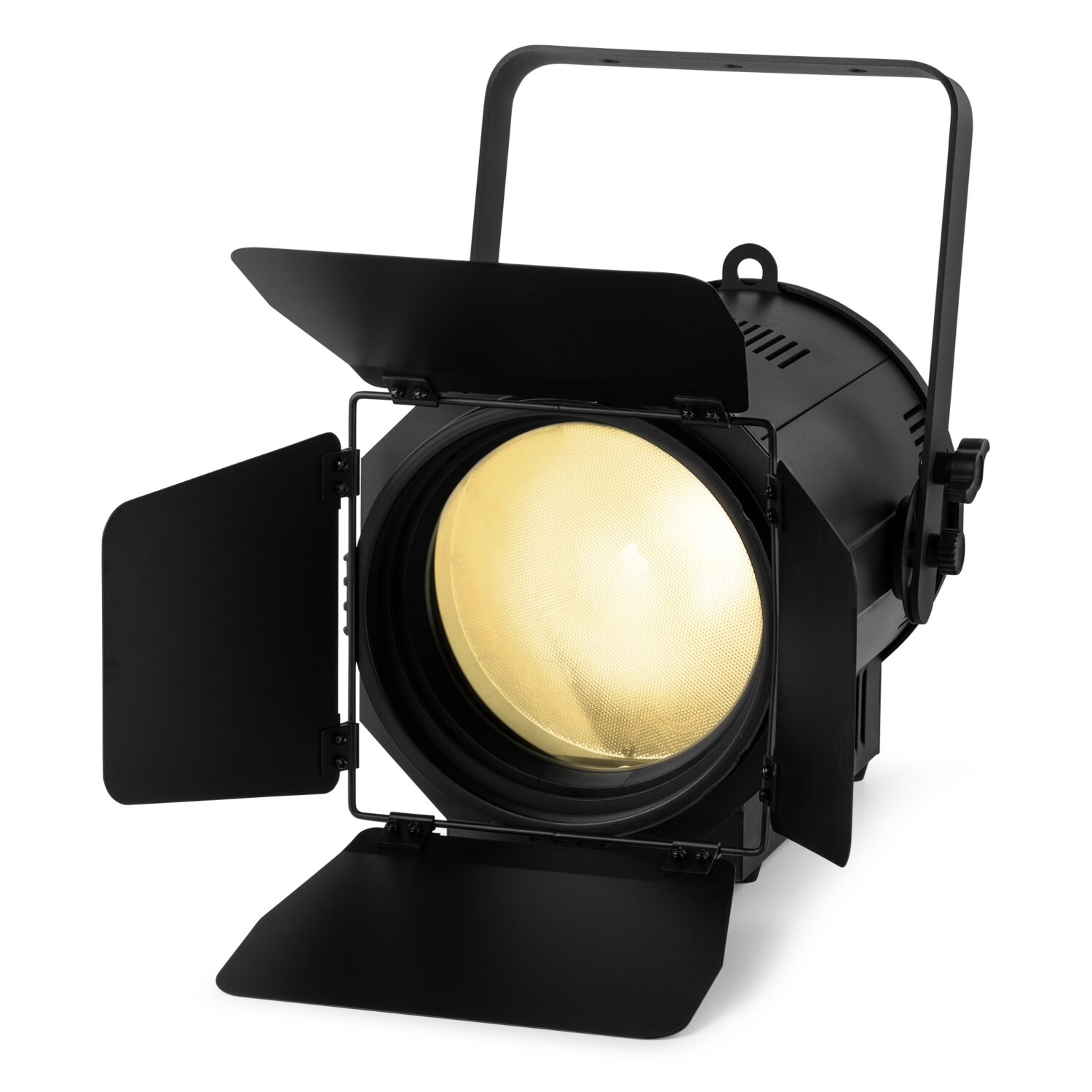

BTF200CZ Fresnel Zoom 200W LED RGBW

151.380

200W 4-in-1 COB LED
RGBW colour mixing
Lifetime LED: 50.000 hours
18° to 60° Motorized zoom
Compact and lightweight Aluminium body
HQ optical system
16 bit dimming via DMX
Flicker free with selectable PWM

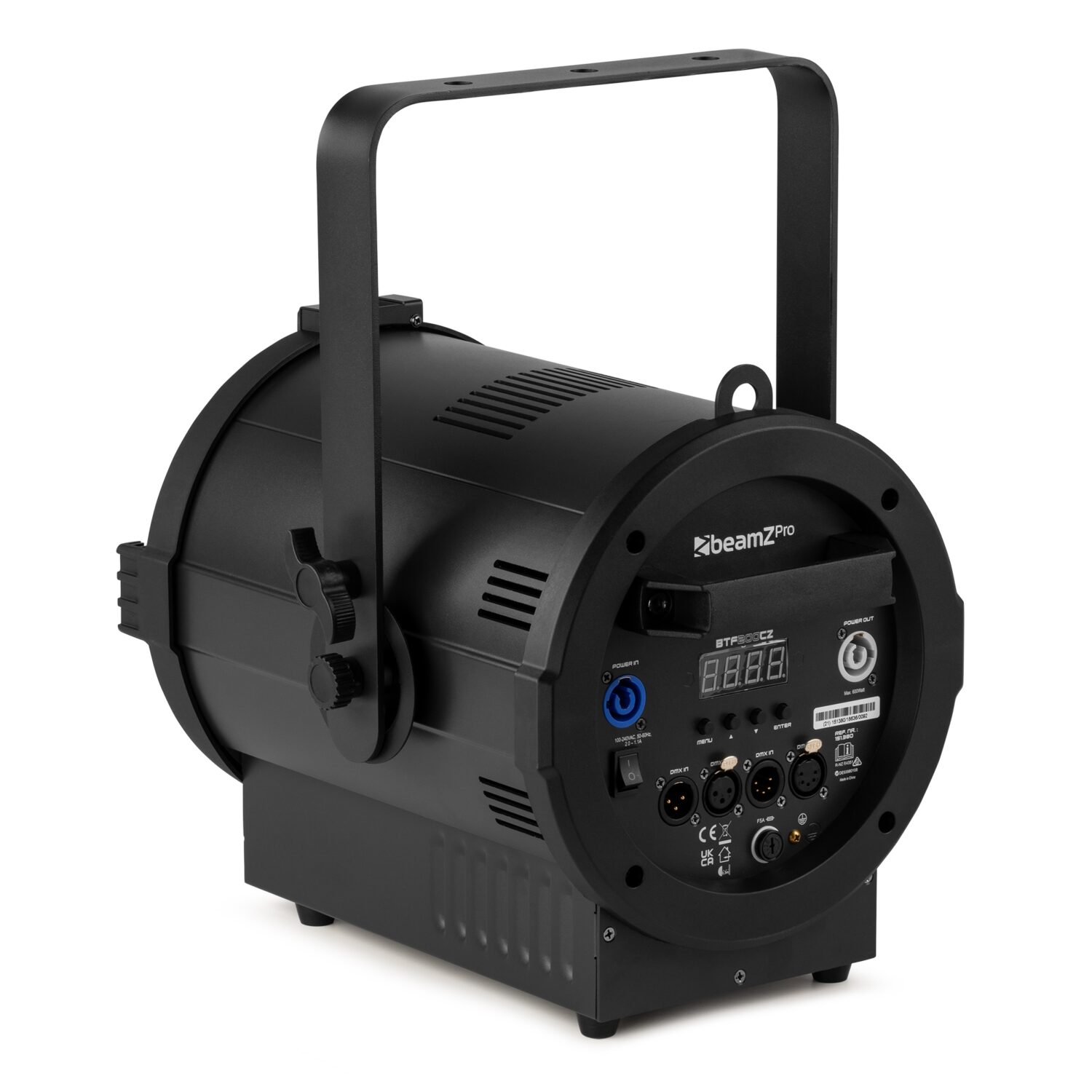

LED Display
DMX (3/5-pin) and manual control options
Intelligent temperature control for silent operation
Powerconnector in&out

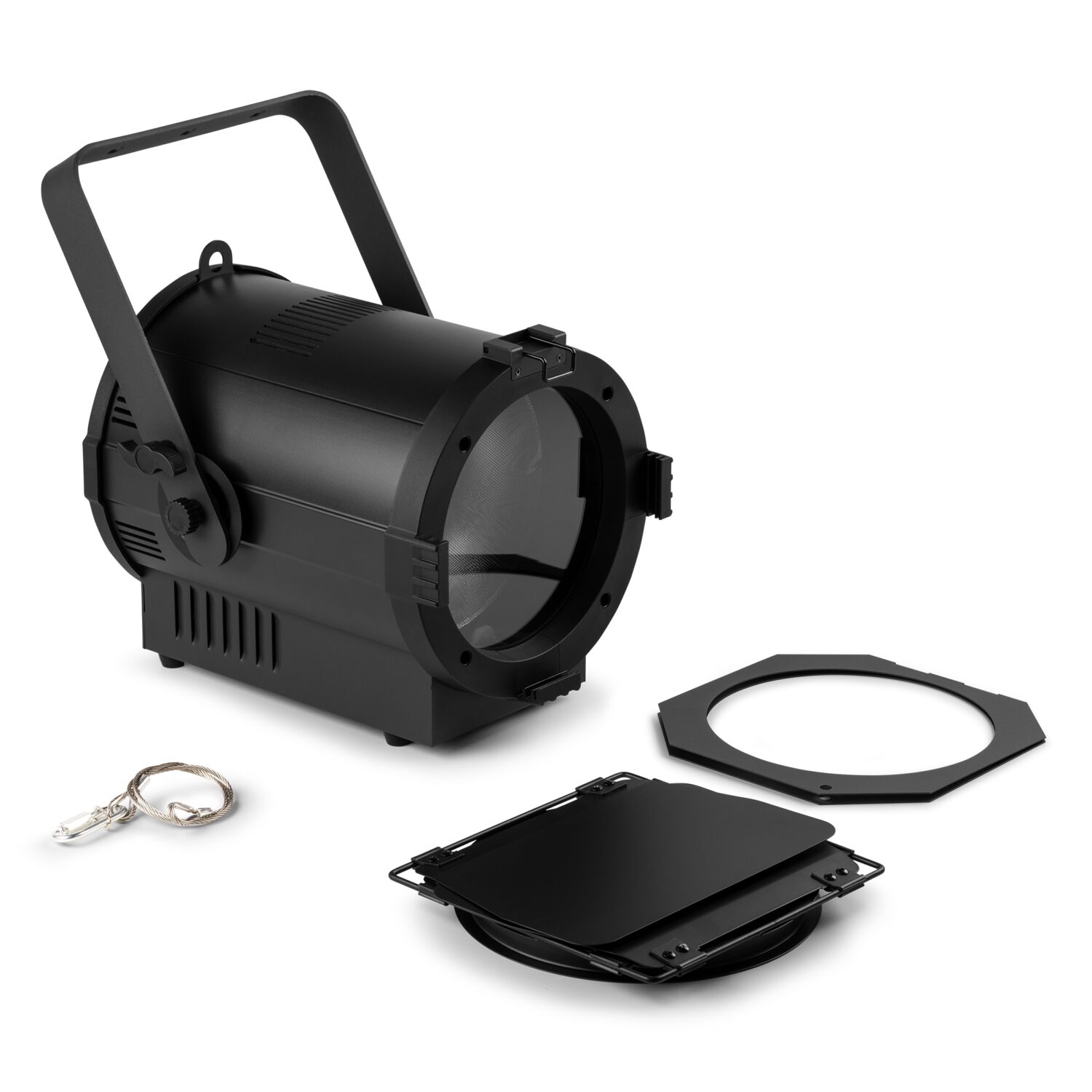

Including powercable, barndoor, safety cord and colour frame

Specifications

Specifications
Description
Videos
Download & links

Product colour	Black
Light source	4-in-1 LED
Colour temperature	3000K - 8000K
Colours	Red, Green, Blue, White
LED power (single LED)	200W
Quantity of LEDs	1
Beam angle: Min	18
Beam angle: Max	60
Illuminance	23.000
Flash rate per second	1 - 19Hz
DMX channels	3, 4, 5, 6, 12
DMX connection	3-pin XLR, 5-pin XLR
Modes	DMX, Manual
IP rating	IP20
Cooling	Temperature controlled fan
Display	LED
Power plug	P-Con
Power consumption	1.35 - 0.68A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	315 x 296 x 330mm
Weight (kg)	9.0000
Included accessories	Mounting bracket, Safety cord, Power cable

The BTF200CZ Fresnel Zoom is powered with a high power 200W 4-in-1 COB LED to provide superior colour mixing and is designed to replace traditional fresnels. The BTF200CZ is equipped with high-quality optics, a motorized 18-60 degree zoom function and is both dimmable and able to be operated as a strobe up to 19 flashes per second. Ideal for use in theatres, studios, museums, exhibitions or any stage setting that requires smooth warm white output from an energy saving fixture with exceptionally long life. Features Powerconnector in&out and DMX controllability. Supplied with barndoors for beam shaping and glare reduction, safety cord and colour frame.
