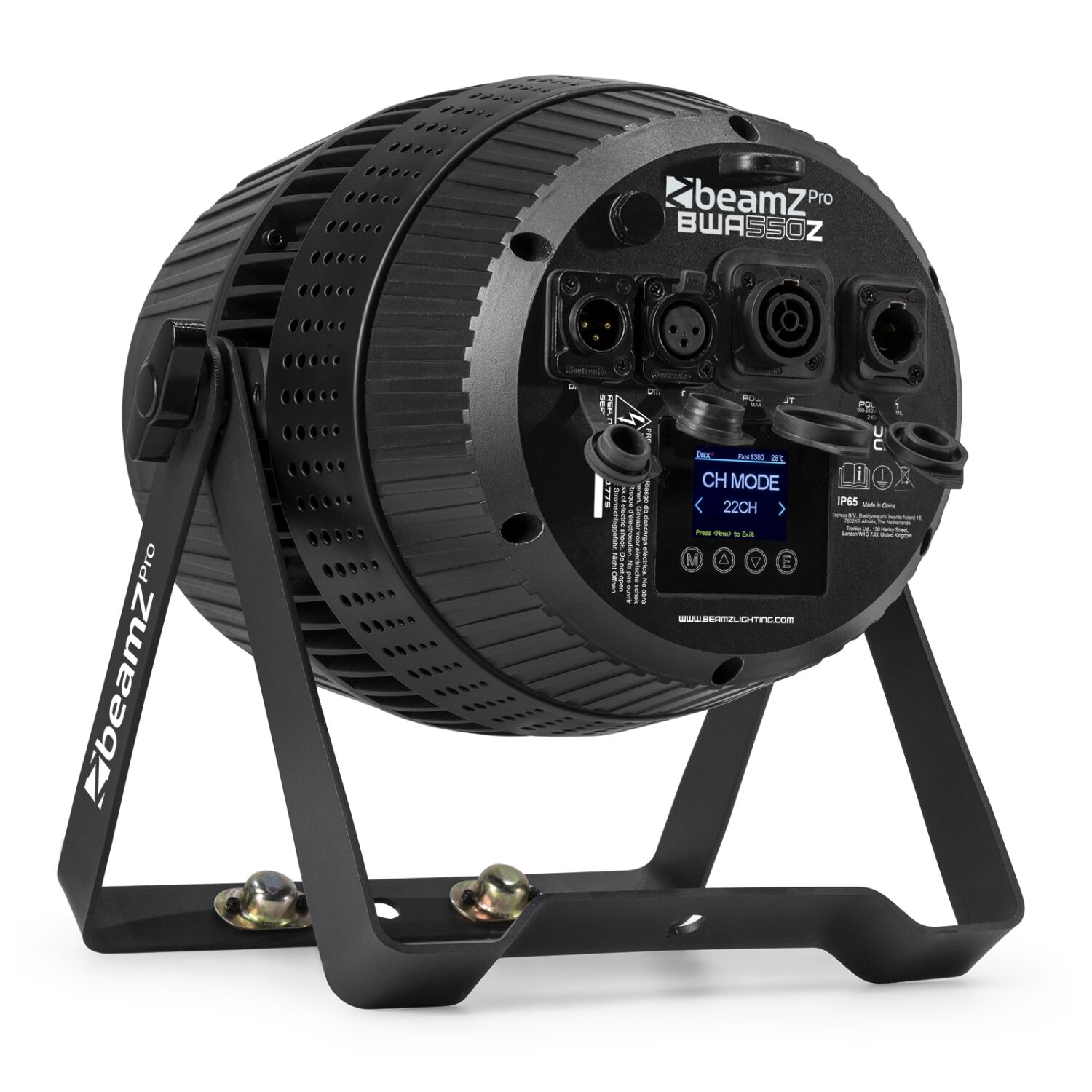

BWA550Z Outdoor PRO PAR with Zoom

beamZ Pro

150.775
  • 19x 15W 4-in-1 LEDs
  • RGBW colour mixing
  • Motorized zoom
  • Zoom range: 2° – 25°
  • IP65 weatherproof
  • 3 separate controllable LED zones
  • 0-100% electronic dimmer
  • Lightweight aluminium housing
  • Low noise level due to the efficient cooling system
  • DMX and Stand-alone mode
  • Master/slave function
  • DMX in/output via 3-pin XLR
  • RDM controllable
  • 3 Auto programs with adjustable speed
  • Control panel with touchscreen OLED display
  • P-Con TR input/output
  • Double bracket also acts as floor stand
  • Including Omega bracket
Product colour Black
Light source 4-in-1 LED
Colours Red, Green, Blue, White
LED power (single LED) 15W
Quantity of LEDs 19
Beam angle: Min
Beam angle: Max 25°
Field angle: min 10°
Field angle: max 51°
Illuminance 88.808 lx @ 1m
Flash rate per second 1 - 20Hz
DMX channels 11, 22
DMX connection 3-pin XLR
Modes Automatic programs, DMX, Manual, Master/Slave
IP rating IP65
Cooling Temperature controlled fan
Display oLed
Power plug P-Con TR1
Power consumption 2.63 - 1.28A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 370 x 296 x 218 mm
Weight (kg) 9.4000
Included accessories Mounting bracket, Power cable, DMX cable

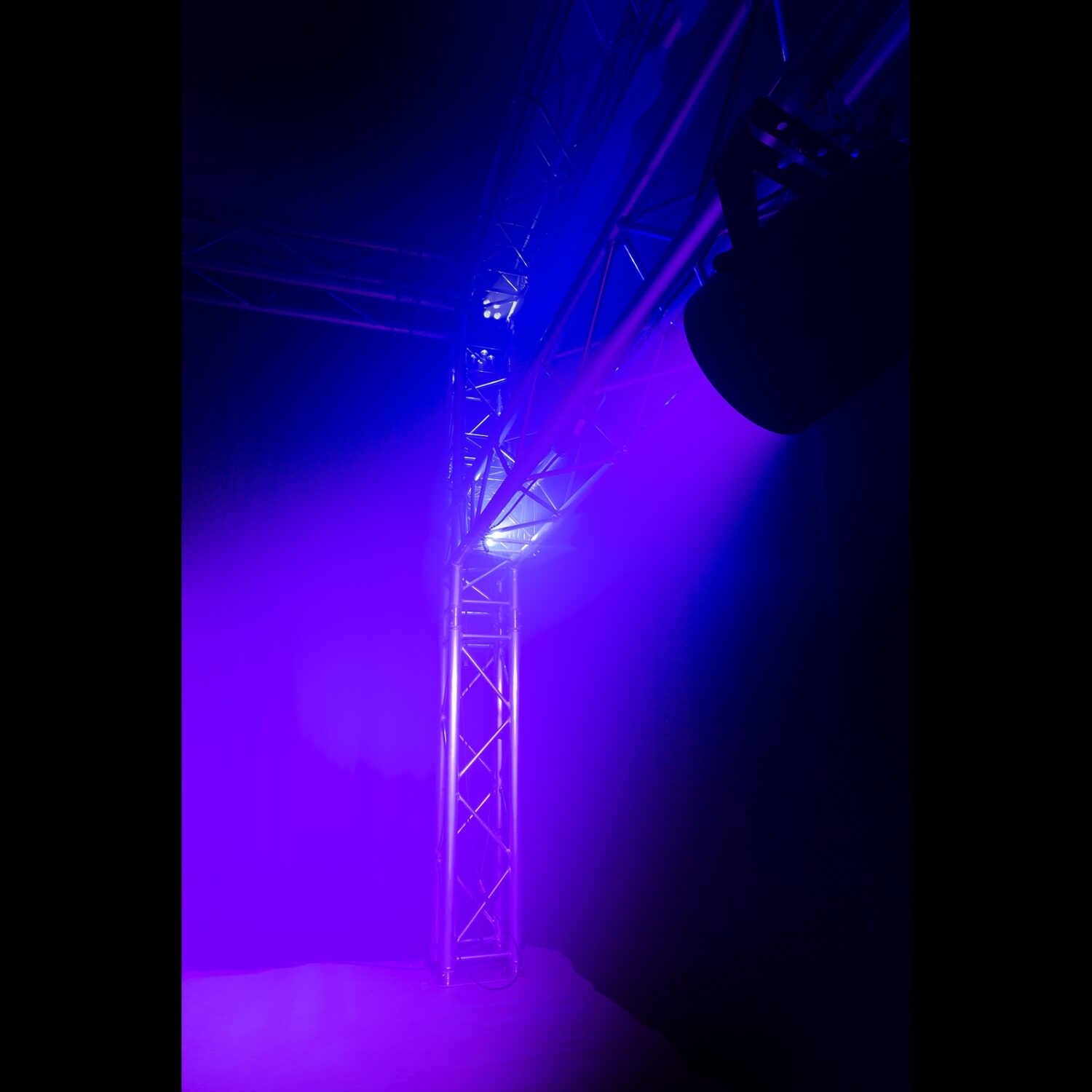

The BWA550Z is part of a series of new generation Pro LED PAR fixtures designed for various purposes such as stage and architectural lighting. This weatherproof robust Pro PAR can be controlled via different DMX settings in 3 separate controllable LED zones. The PAR features 19 LED modules with large lenses, giving you the ability to mix any colour! The BAC550Z also has a motorized zoom lens allowing the fixture to create fantastic beam or wash effects. The additional P-Con output allows you to easily connect the power of multiple units to one outlet.
