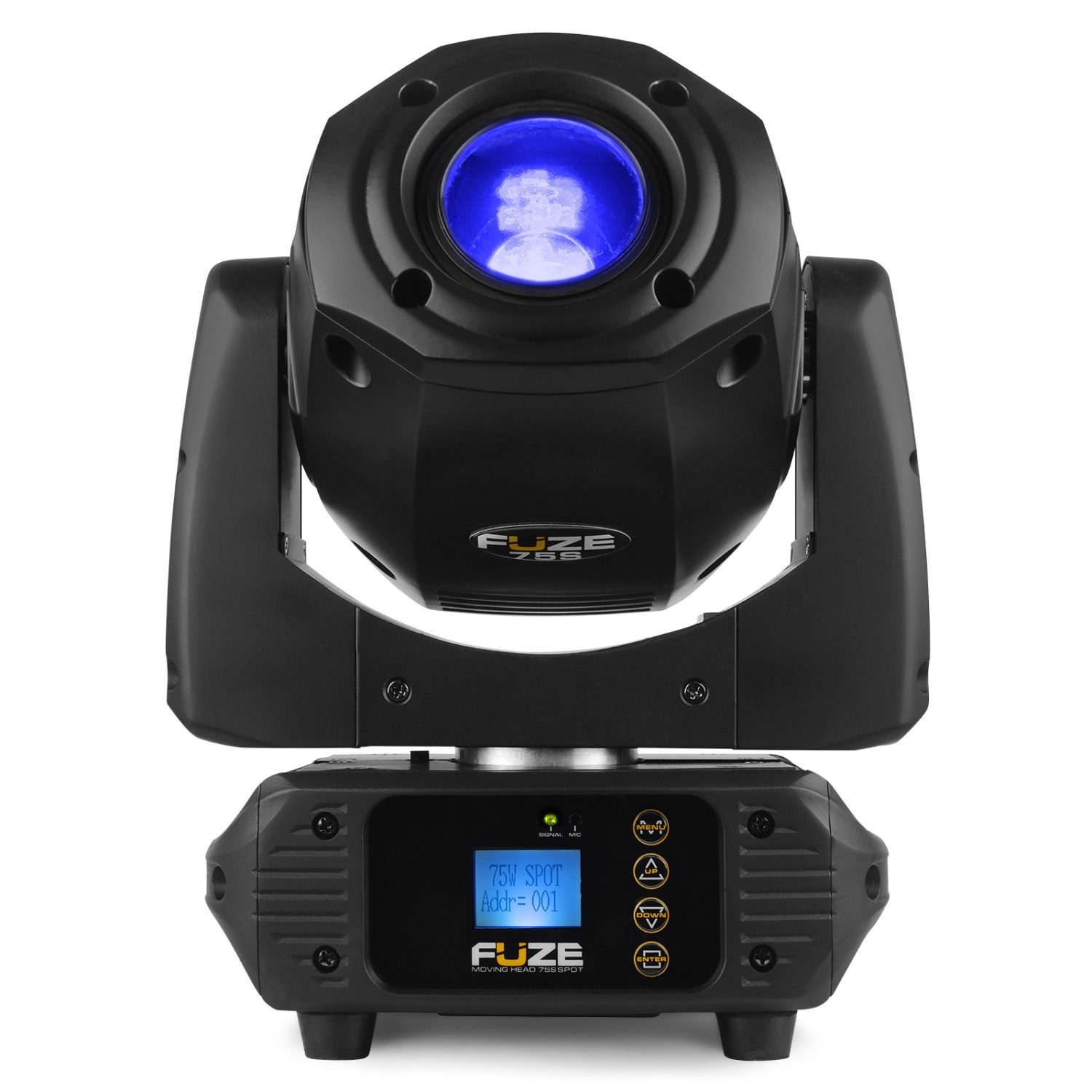

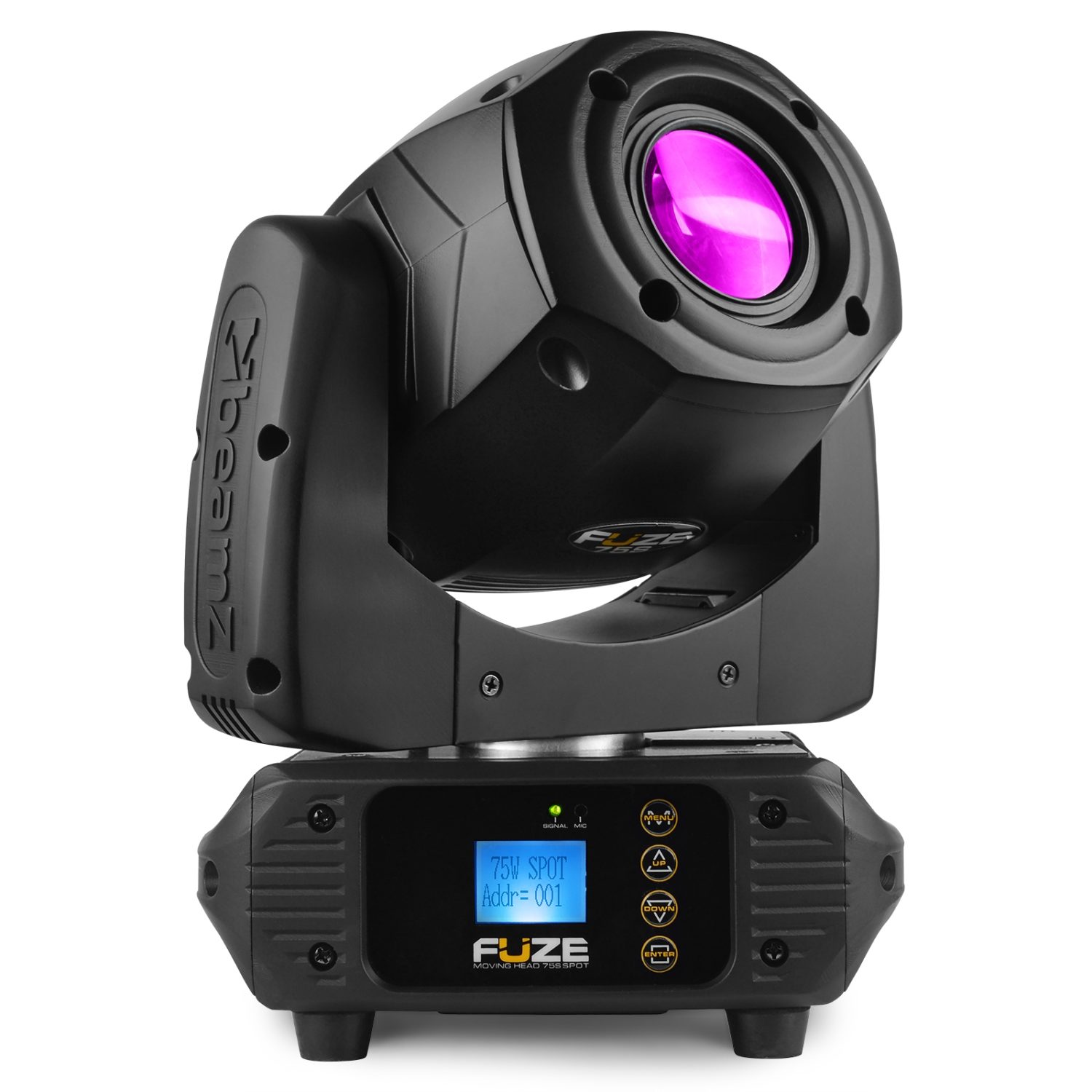

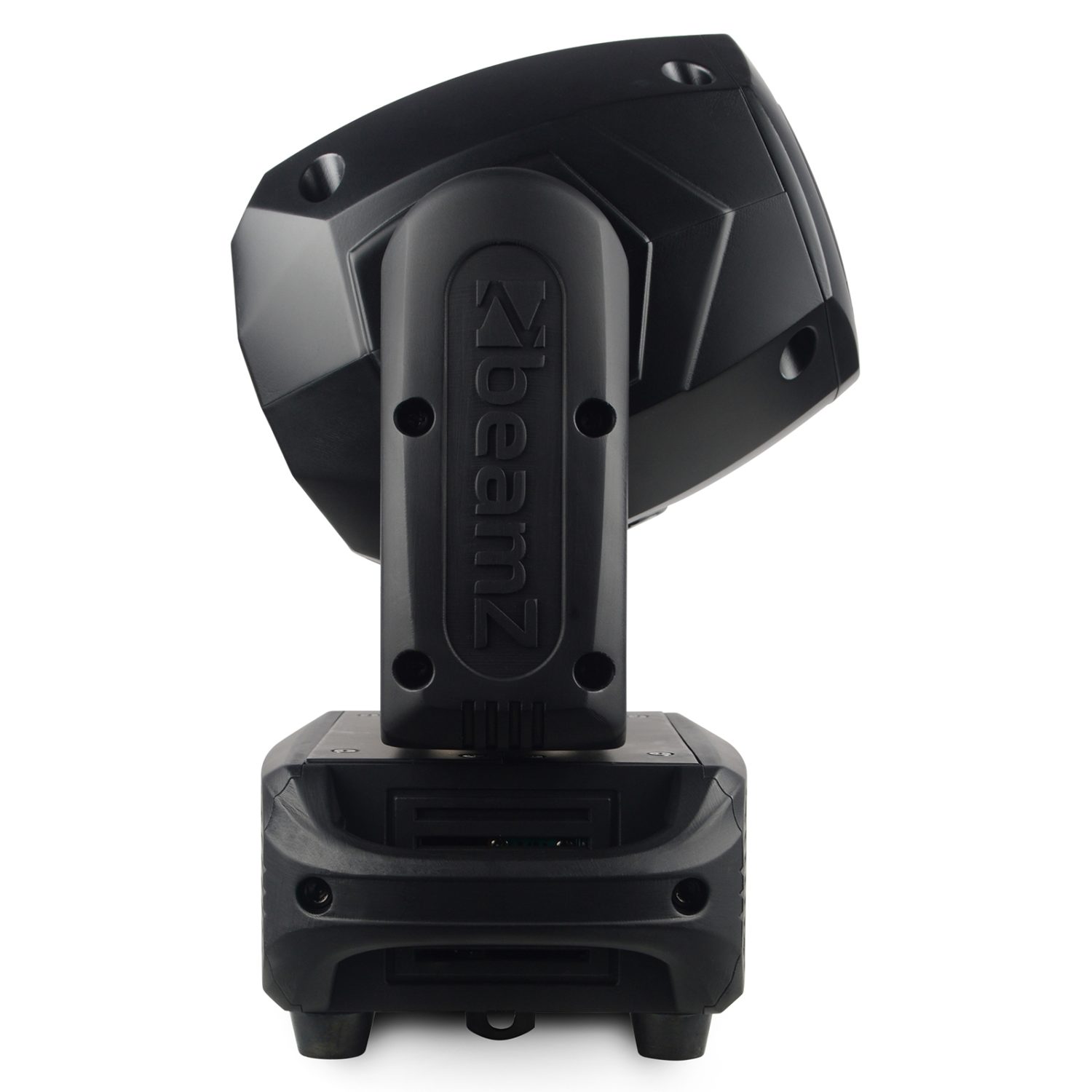

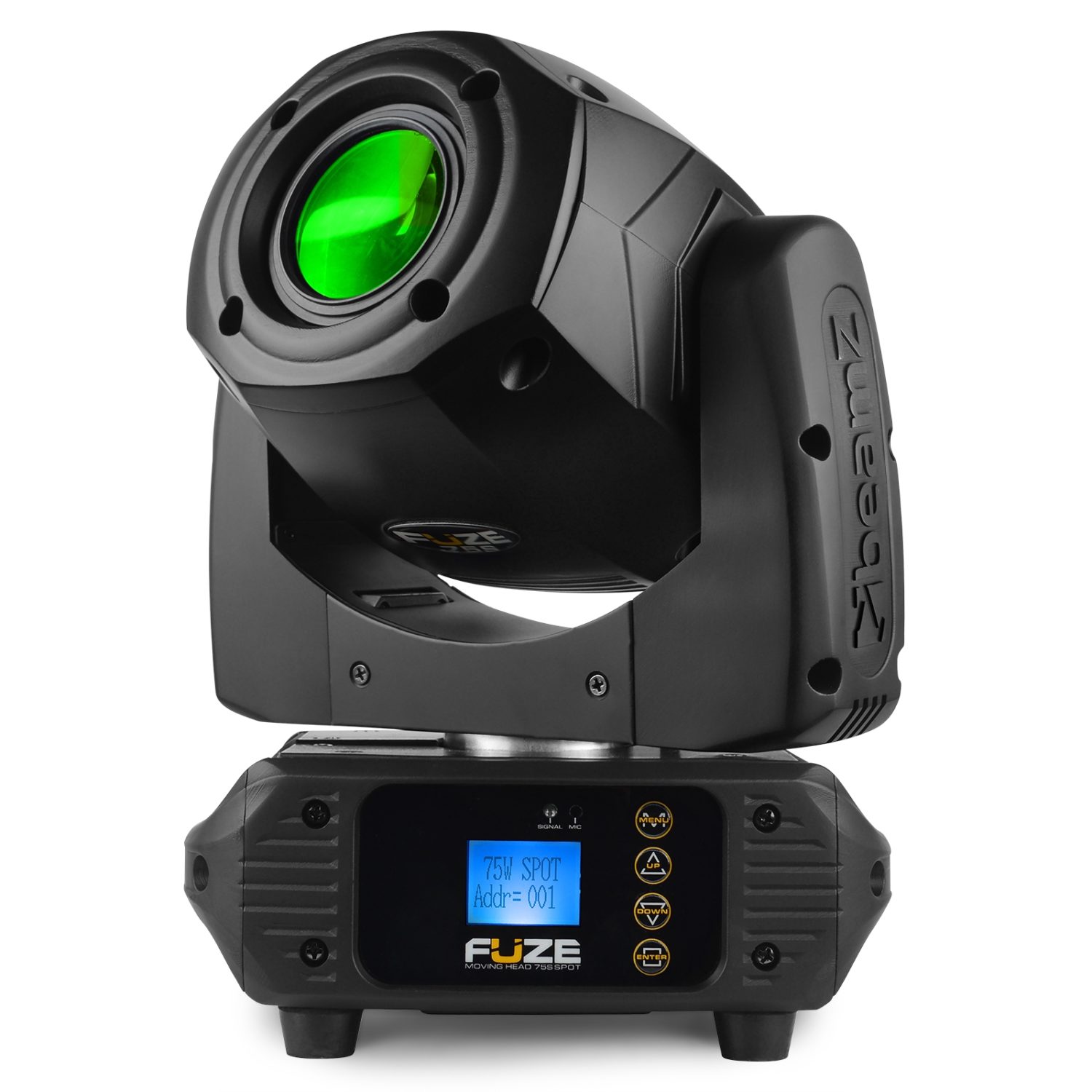

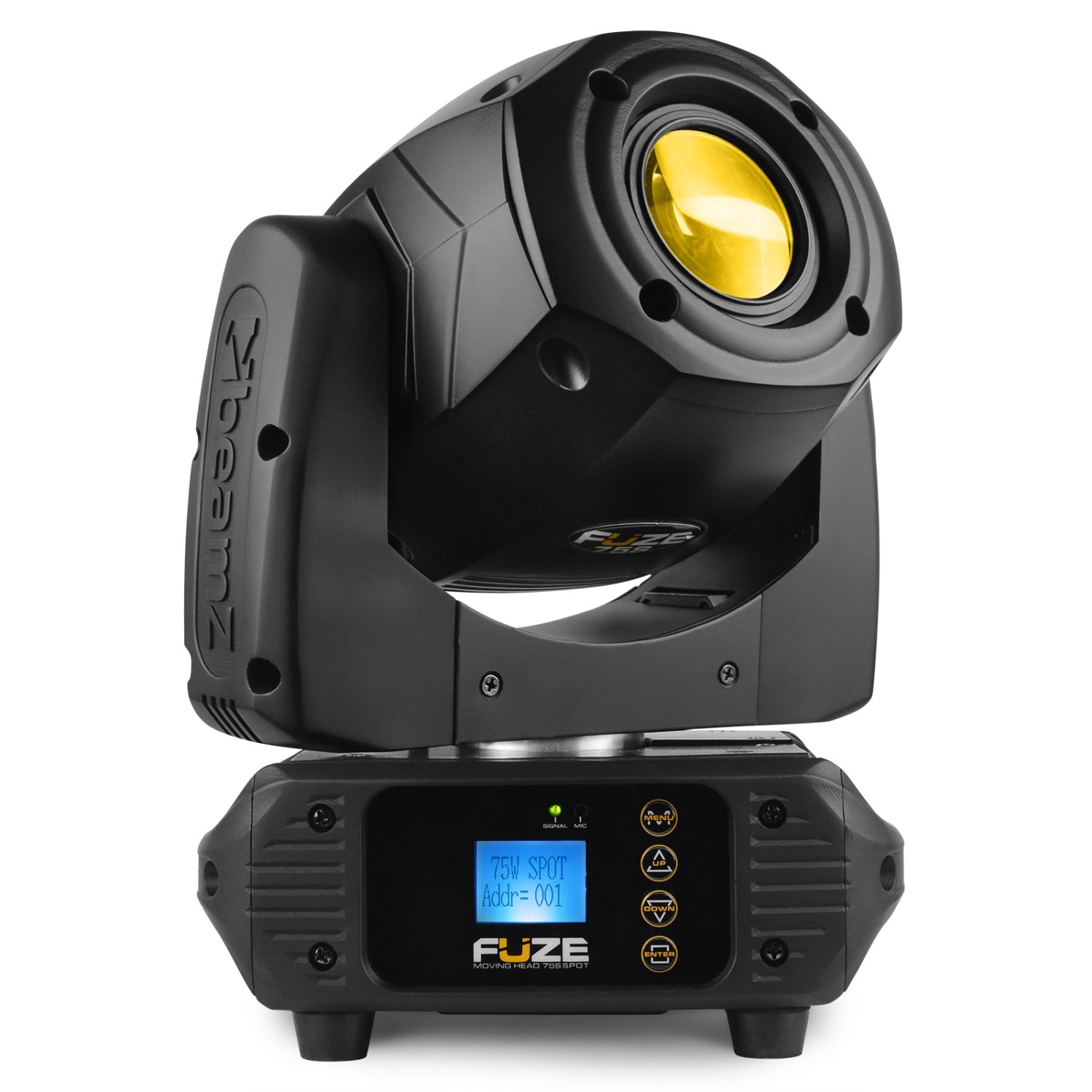

Fuze75S LED Spot Moving Head

beamZ

150.382
  • 75W High Intensity White LED
  • 11 or 13 DMX channels
  • DMX and Stand-alone mode
  • Master/slave synchronization
  • Sound activated with adjustable sensitivity
  • Auto mode
  • Beam angle 12°

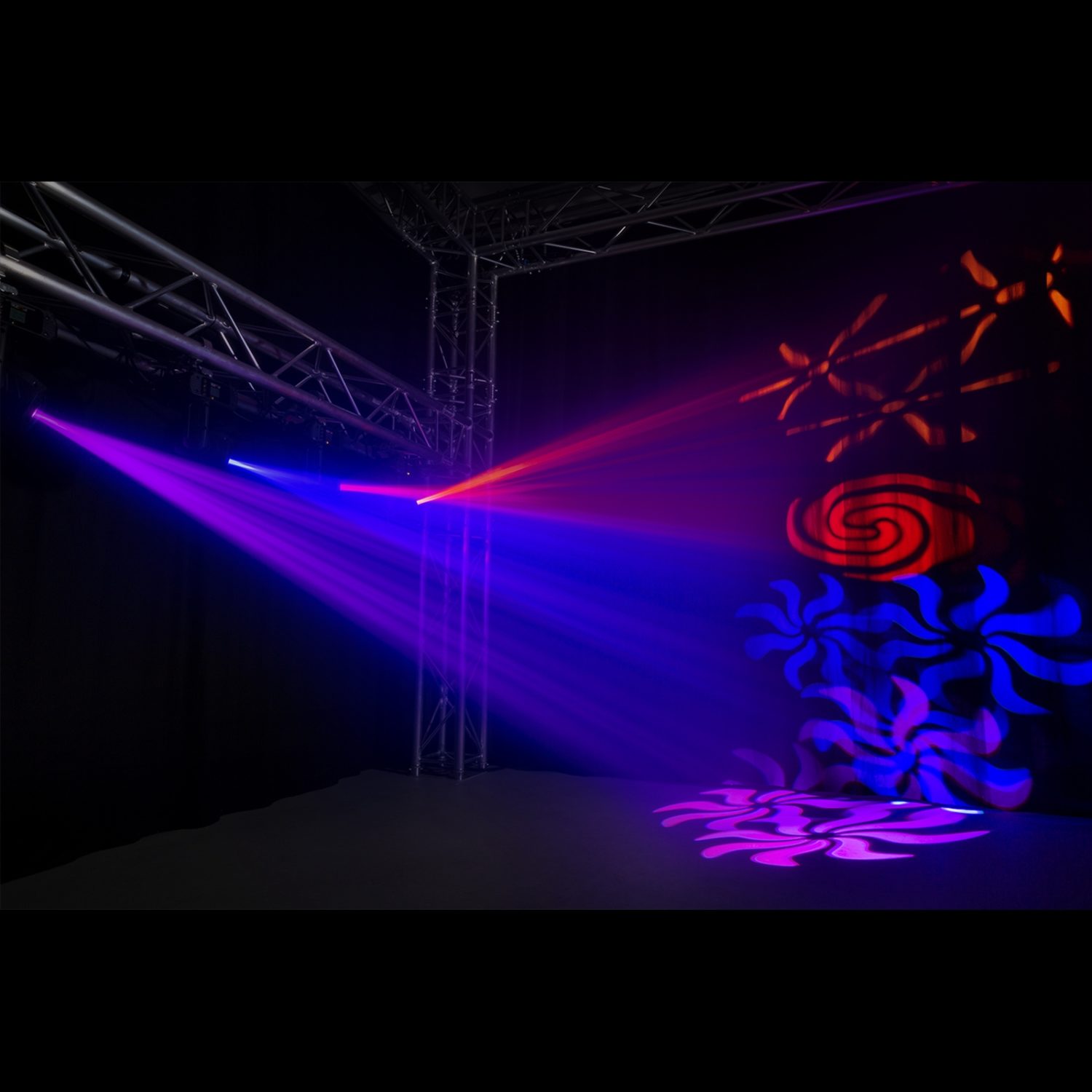

  • Gobo Wheel: 6x metal gobos + open (interchangeable)
  • Gobo functions: gobo shake and gobo rotation
  • 8 Colours + open
  • Rotatable 3 facet prism
  • Motorized focus
  • 0-100% Electronic Dimmer
  • User-selectable pan and tilt
  • Strobe: 1-11Hz
  • Automatic pan/tilt correction
  • Reset function
  • Control panel with LCD display

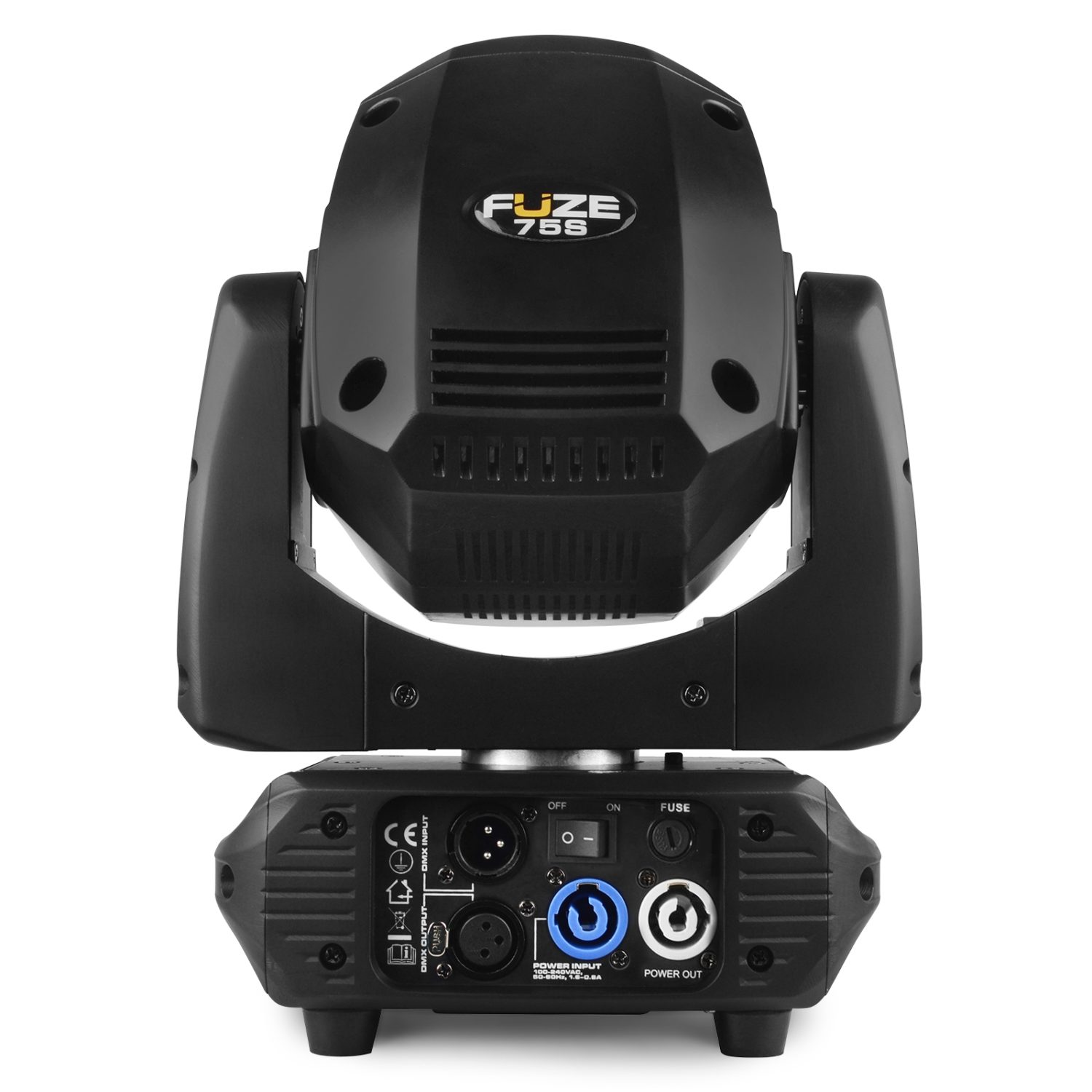

  • DMX in/output via 3-pin XLR
  • Powerconnector input/output

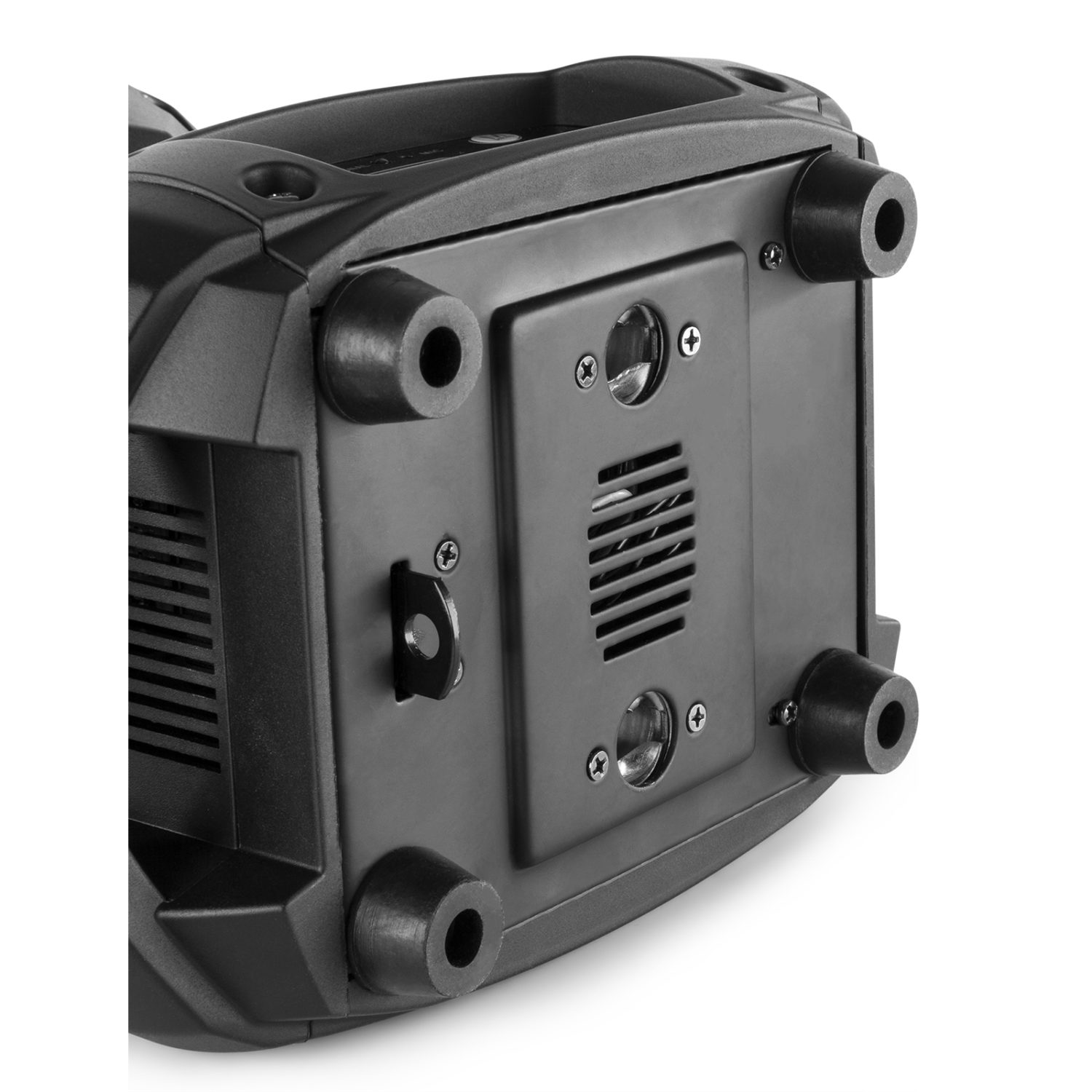

  • Quick lock omega clamp included
  • DMX cable included
  • Powerconnector cable and safety cord included

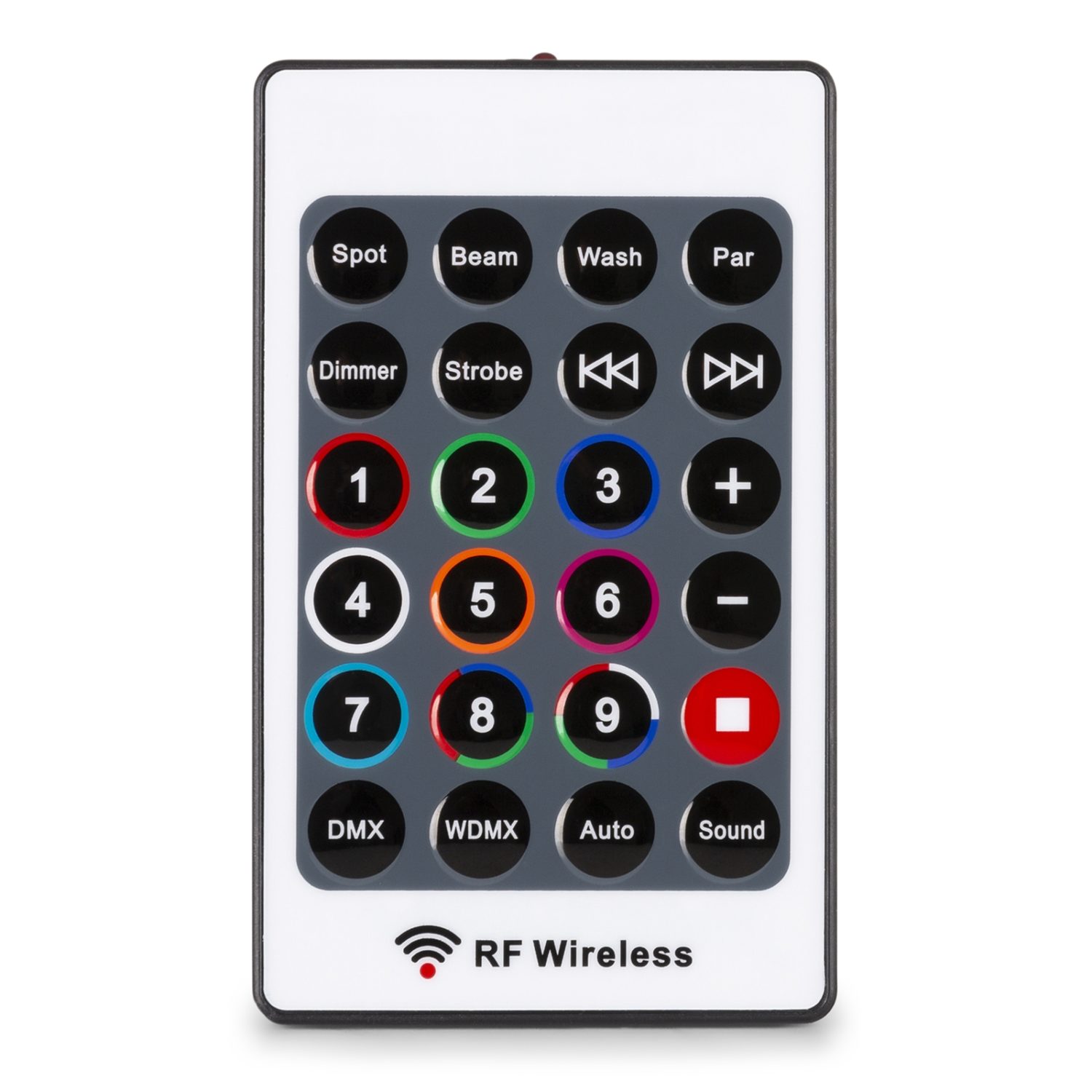

  • Included remote control
Light source Single colour LED
Colours White
LED power (single LED) 75W
Quantity of LEDs 1
Colour wheel 8 colours + open
Beam angle 12°
Motorized focus Yes
Illuminance 70.000lx@1m
Head movement: Pan 630
Head movement: Tilt 270
Rotating gobos: Quantity 6
Gobo shake Yes
Interchangeable gobos Yes
Gobo dimensions 15.98mm
Prisma 1 3 Facet
Flash rate per second 1 - 11Hz
Modes Automatic programs, DMX, Manual, Master/Slave
Sound to light mode Yes
DMX channels 11, 13
DMX connection 3-pin XLR
Display LCD
IP rating IP20
Cooling Temperature controlled fan
Power plug P-Con
Power consumption 1.6 - 0.8A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 245 x 230 x 290
Weight (kg) 5.3000

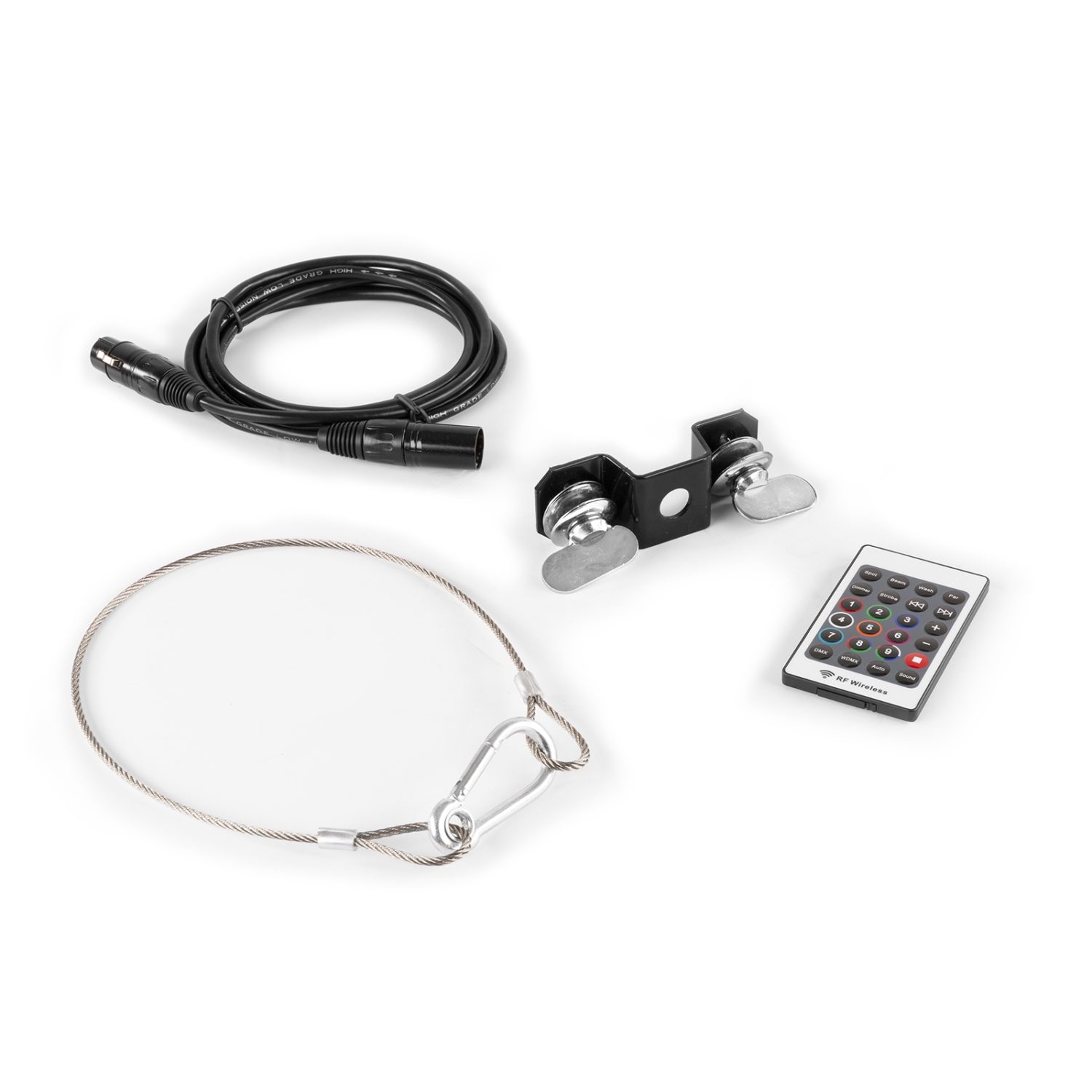

Included accessories Remote control (wireless), Mounting bracket, Safety cord, Power cable, DMX cable

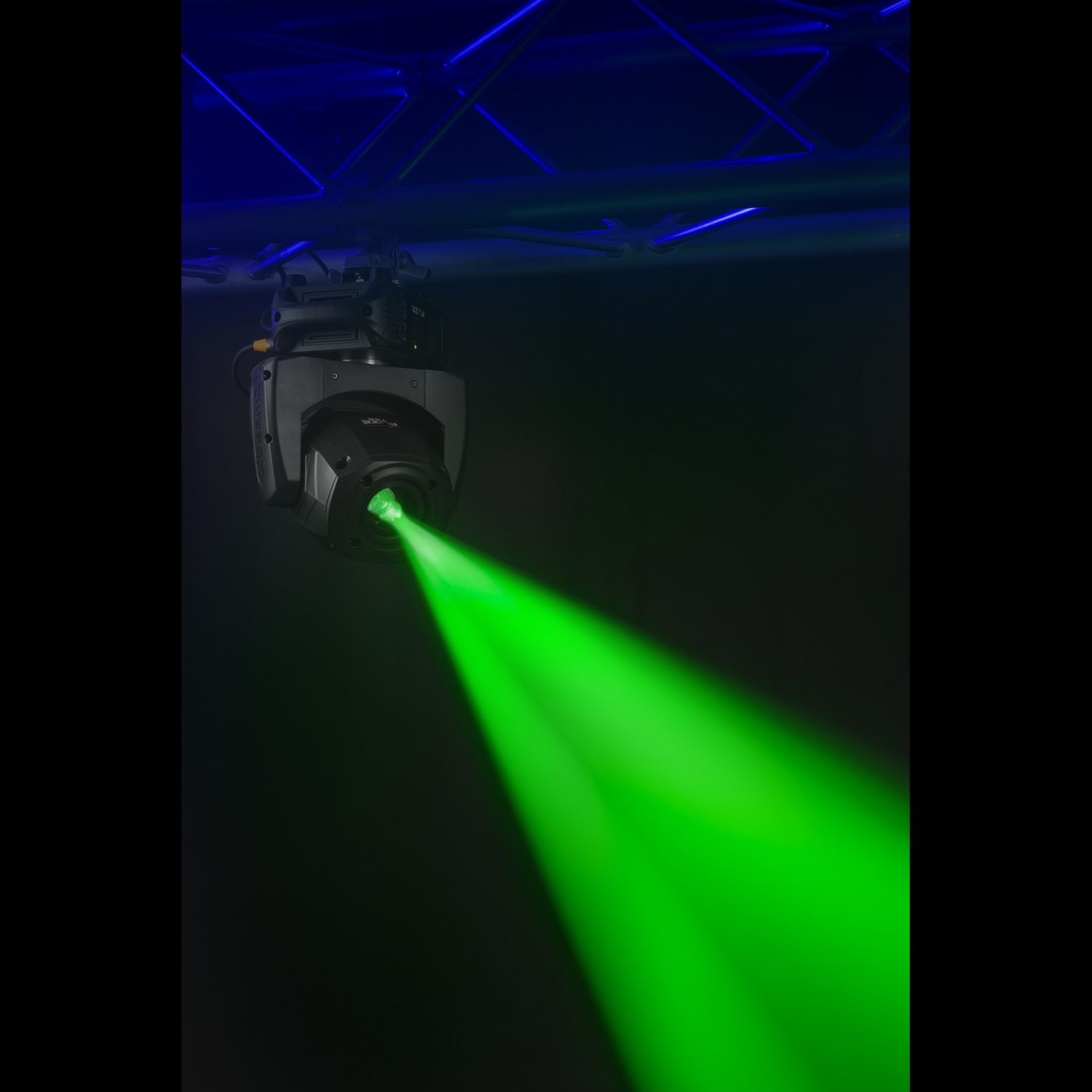

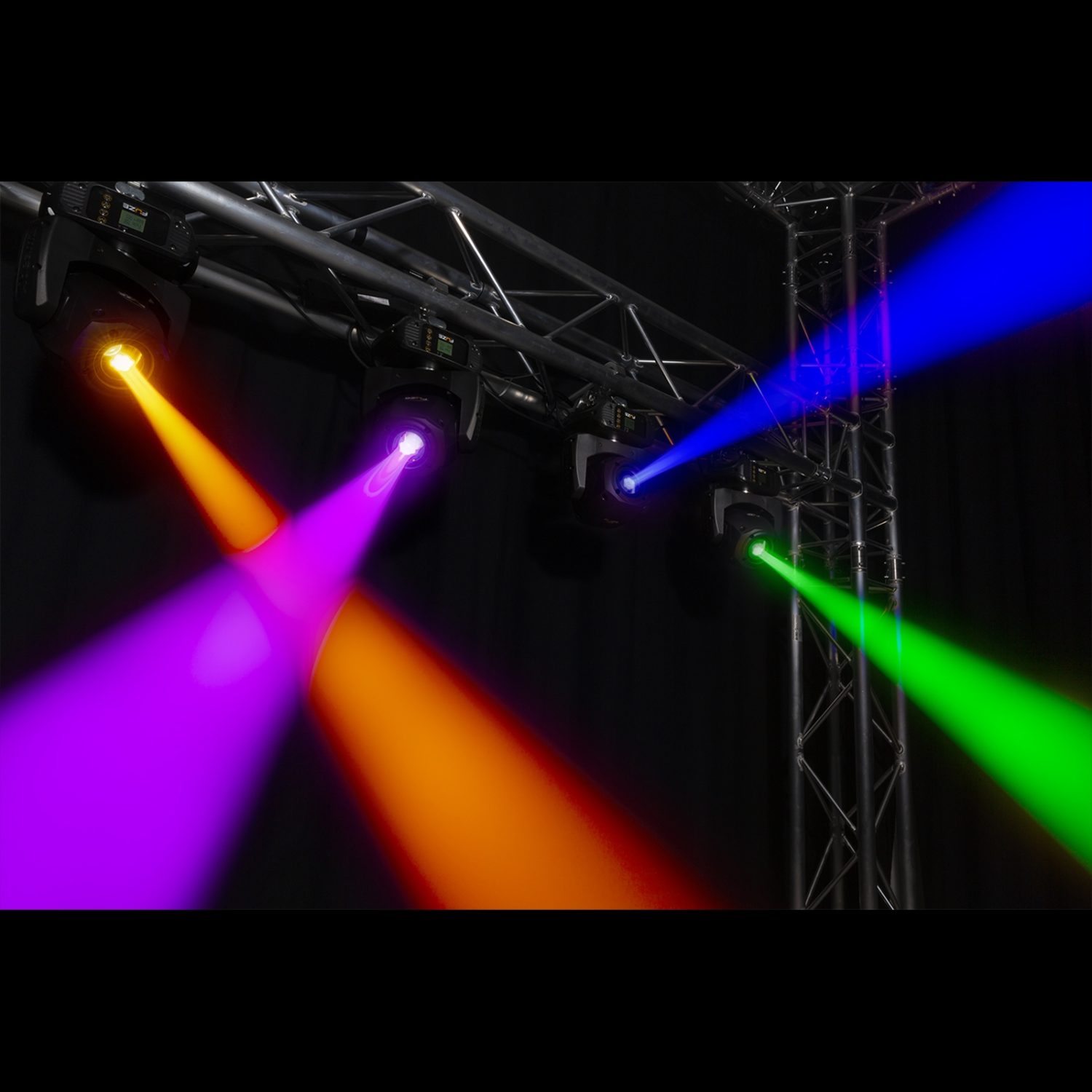

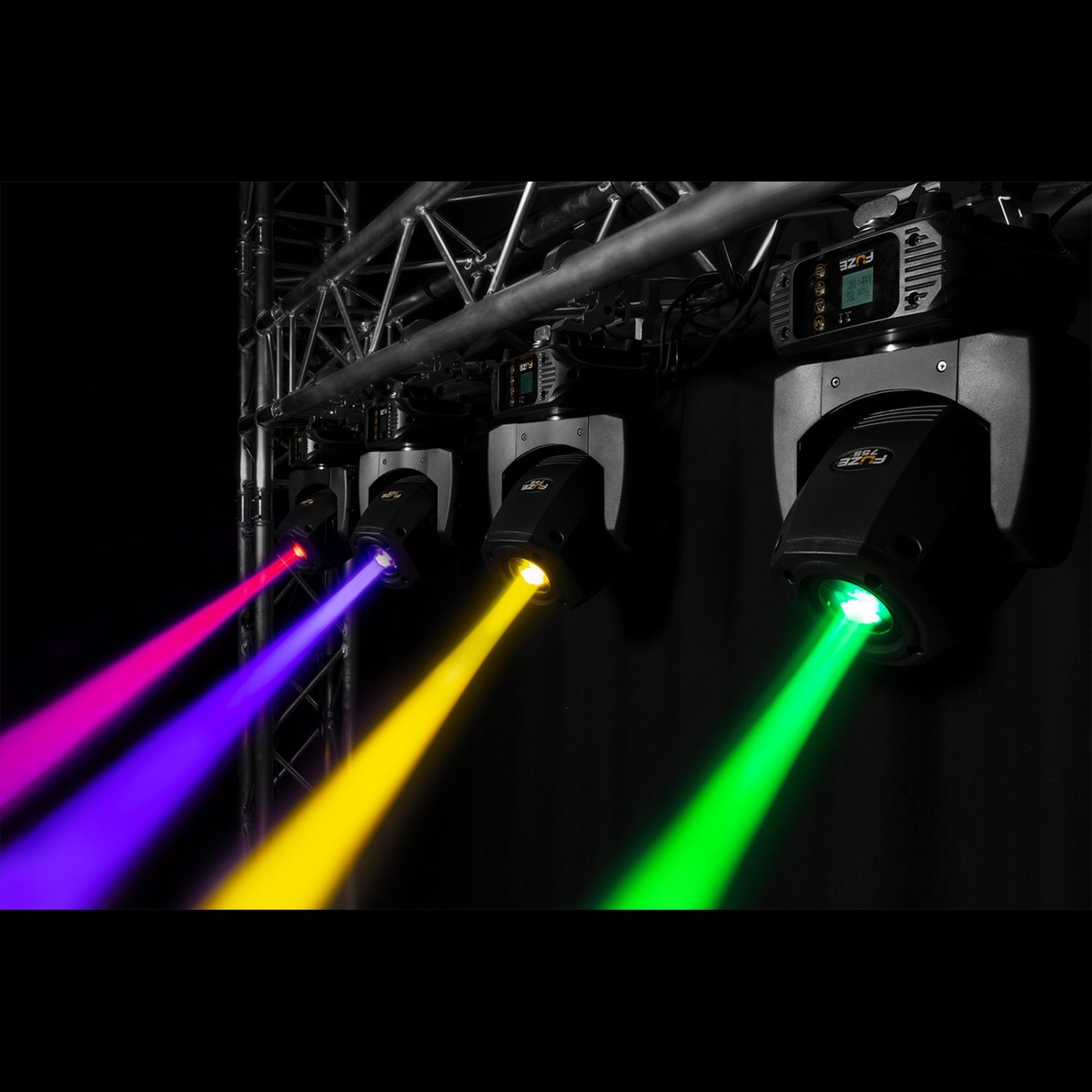

The Fuze75S Spot LED Moving Head is a lightweight and compact moving head featuring a powerful 75W LED. It produces sharp, light-coloured beams that can be customised using the colour and gobo wheels. The Fuze75S also features a 3-facet prism that splits the beam for great effects and to cover larger areas. Operation via DMX, Auto mode with exiting built-in light shows, Sound Active Mode or linked in Master/Slave mode. Perfect for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical.
