Helios Multifunctional Outdoor Uplight Kit

150.616

Uplight with built-in battery and decorative attachments

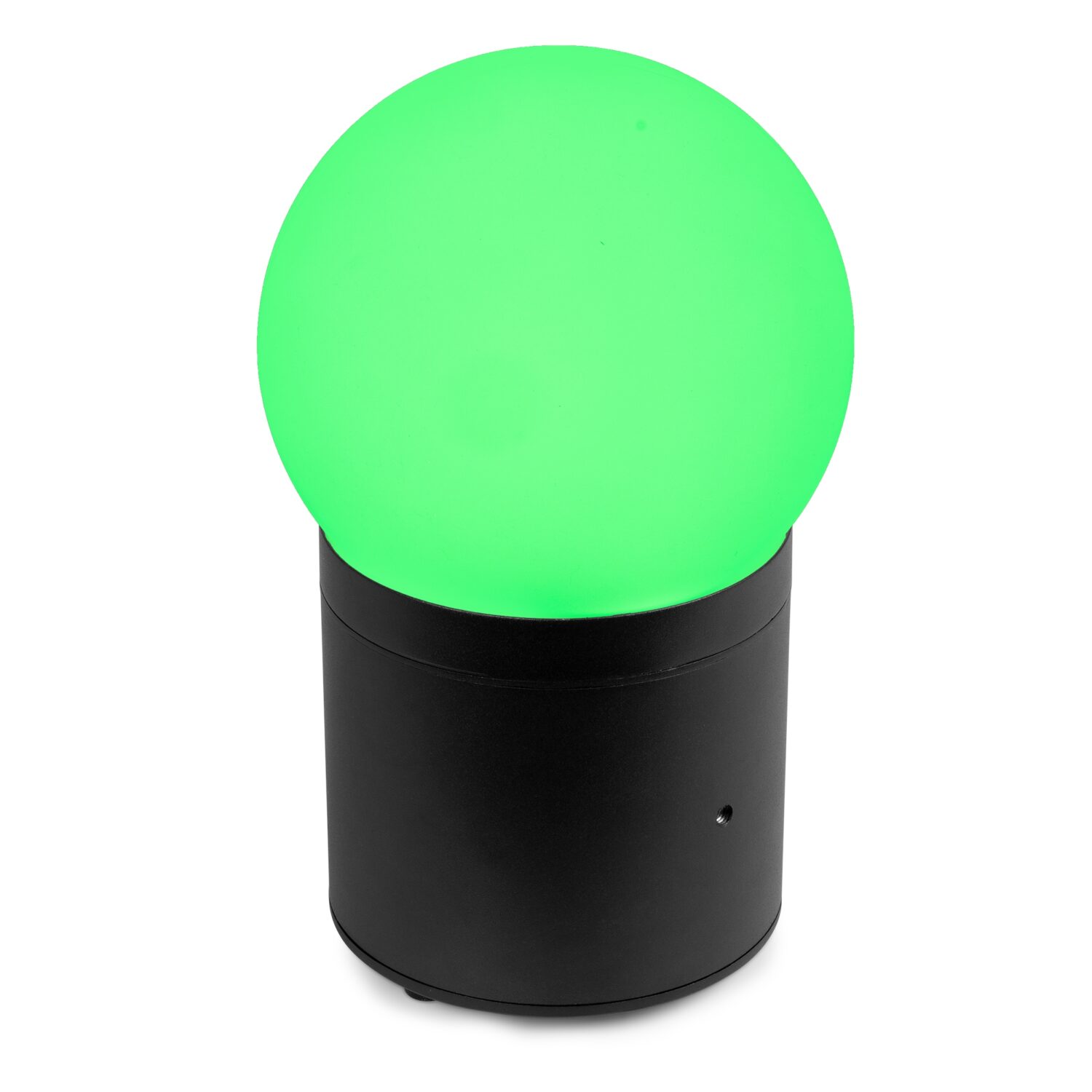

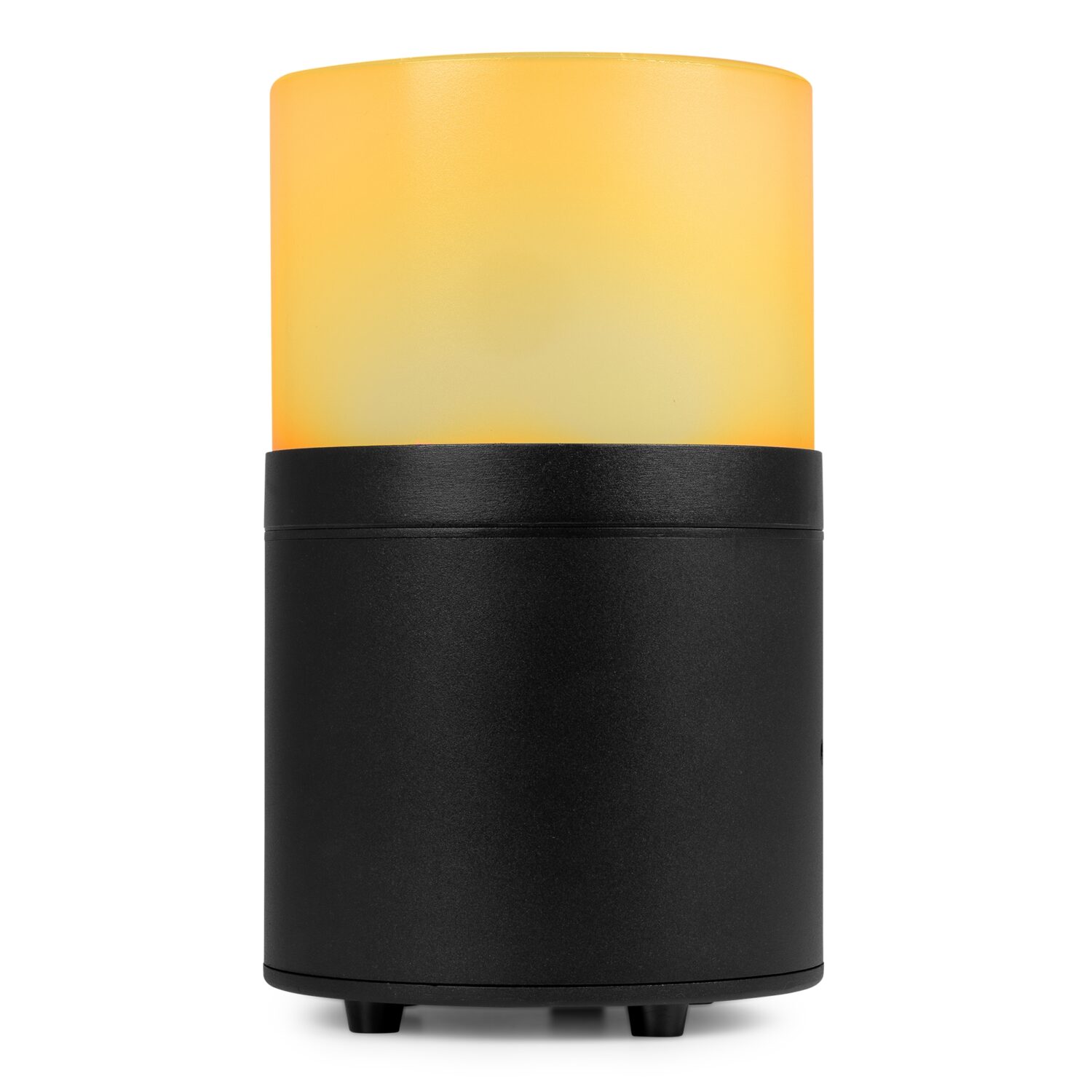

Including magnetic finishing ring, sphere and tube-shaped top unit
IP65 weatherproof for indoor and outdoor use

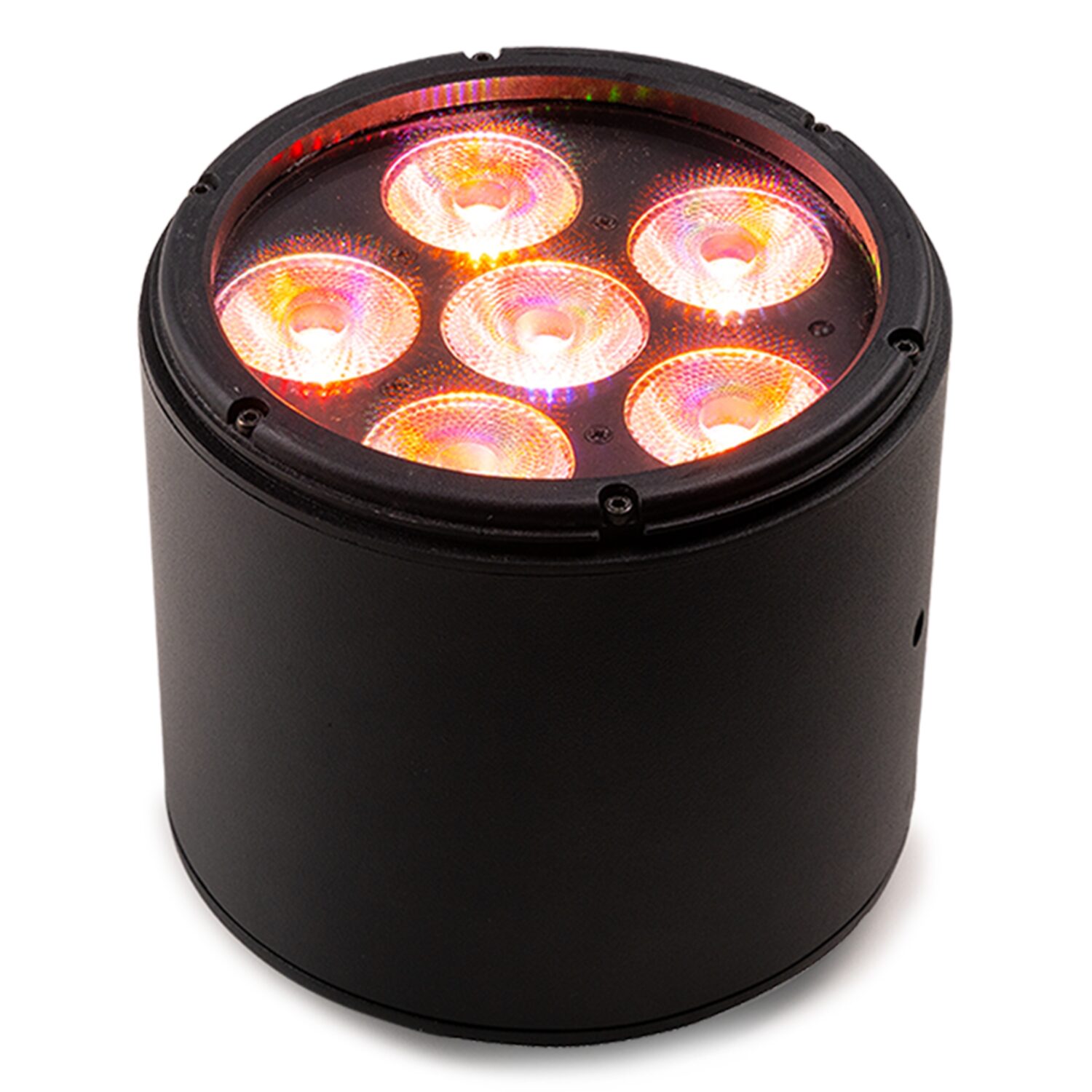

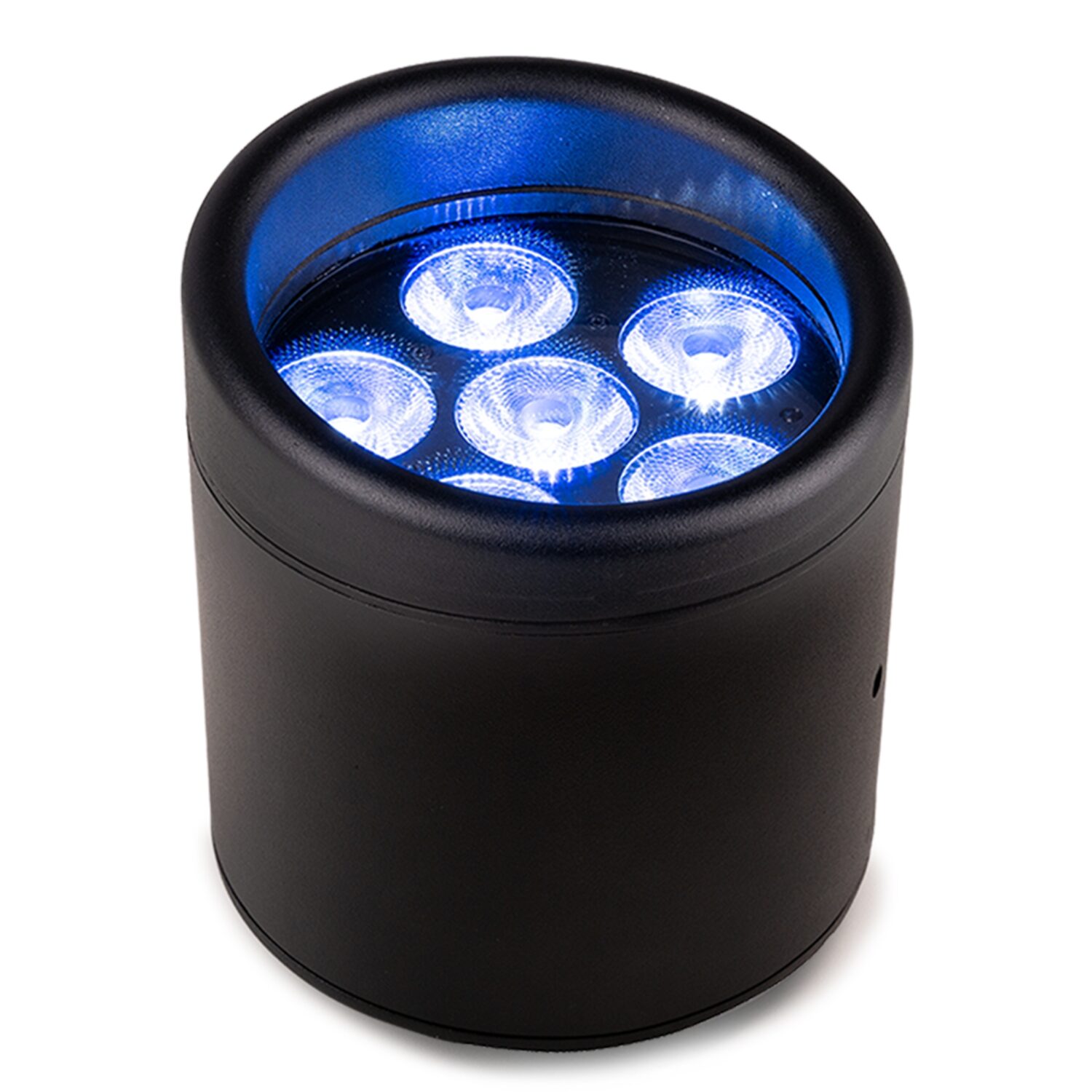

6x 15W 6-in-1 RGBWA-UV LEDs
Up to 15 hours operating time (depending on colour and intensity)
Wireless DMX (WDMX and EazyLink)
Wi-Fi control via App
Auto mode with adjustable speed
Master/slave synchronization
Ultra high frequency dimming (64KHz)

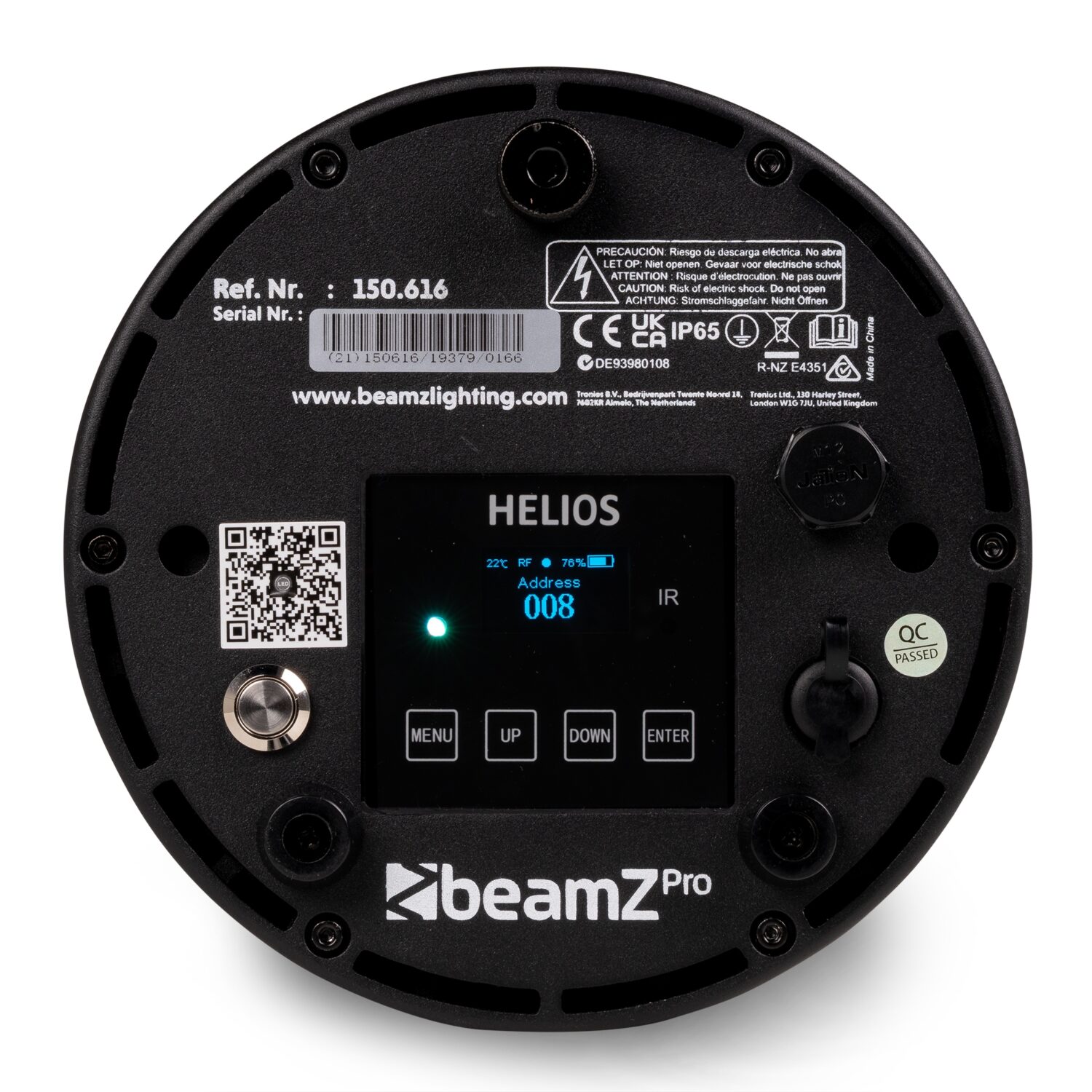

Control panel with OLED display
Key lock on the uplight unit

Specifications

Specifications
Description
Download & links

Product colour	Black, Transparent
Light source	6-in-1 LED
Colours	Red, Green, Blue, Amber, White, Ultra Violet
LED power (single LED)	15W
Quantity of LEDs	6
Illuminance	10.895 lx @ 1m
Beam angle	25°
Field angle	38°
Flash rate per second	1 - 20Hz
IP rating	IP65
DMX channels	2, 6, 8, 11
DMX connection	Wireless DMX
Wireless DMX protocol	Eazylink (15m indoor, 25m outdoor), WDMX
Battery	11.1V - 8.8Ah
Power consumption	0.535 - 0.290A
Power supply	100-240VAC 50/60Hz (12V Adapter)
Power plug	External power supply
Included accessories	Power adapter
Dimensions (L x W x H)	200 x 200 x 310mm
Weight (kg)	3.7500

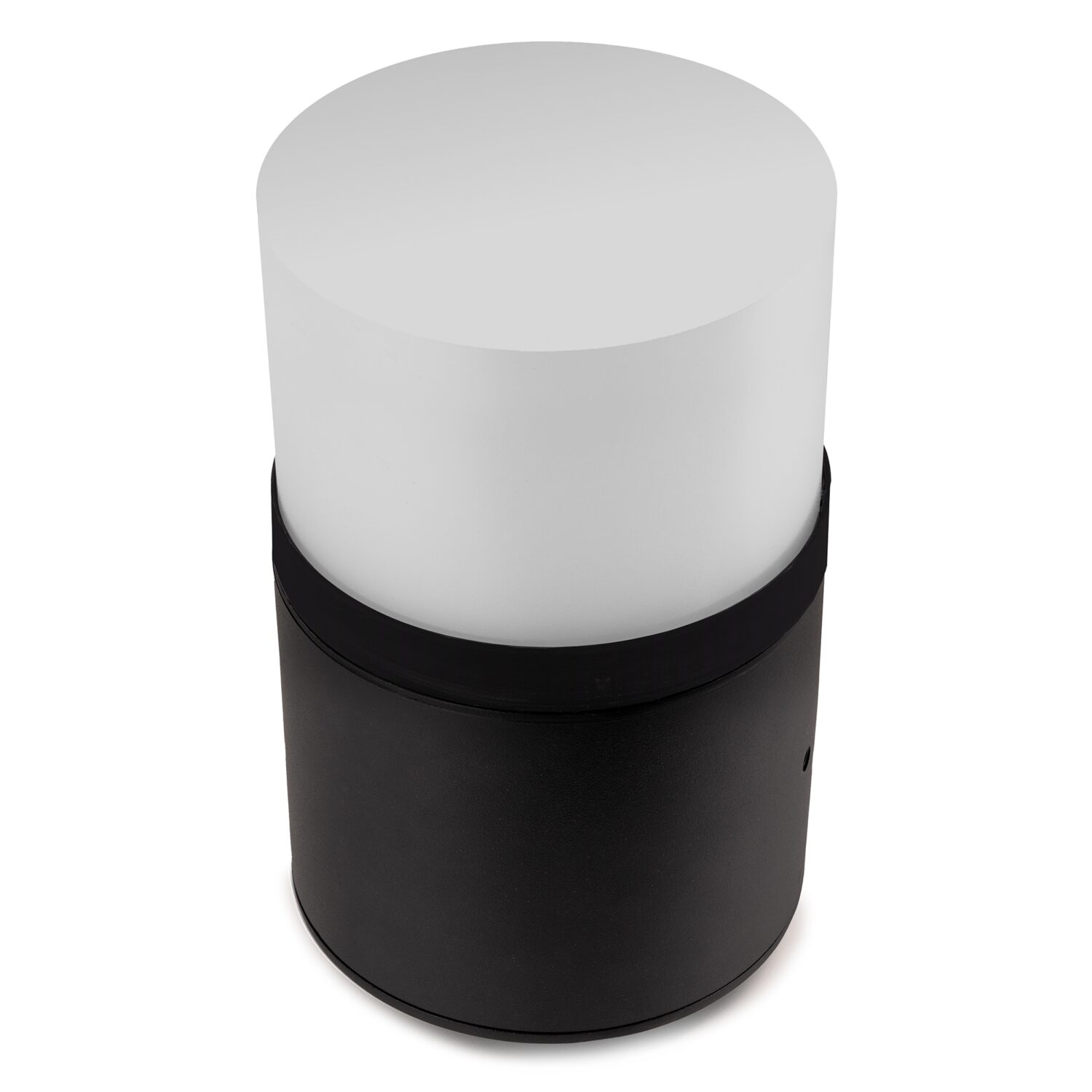

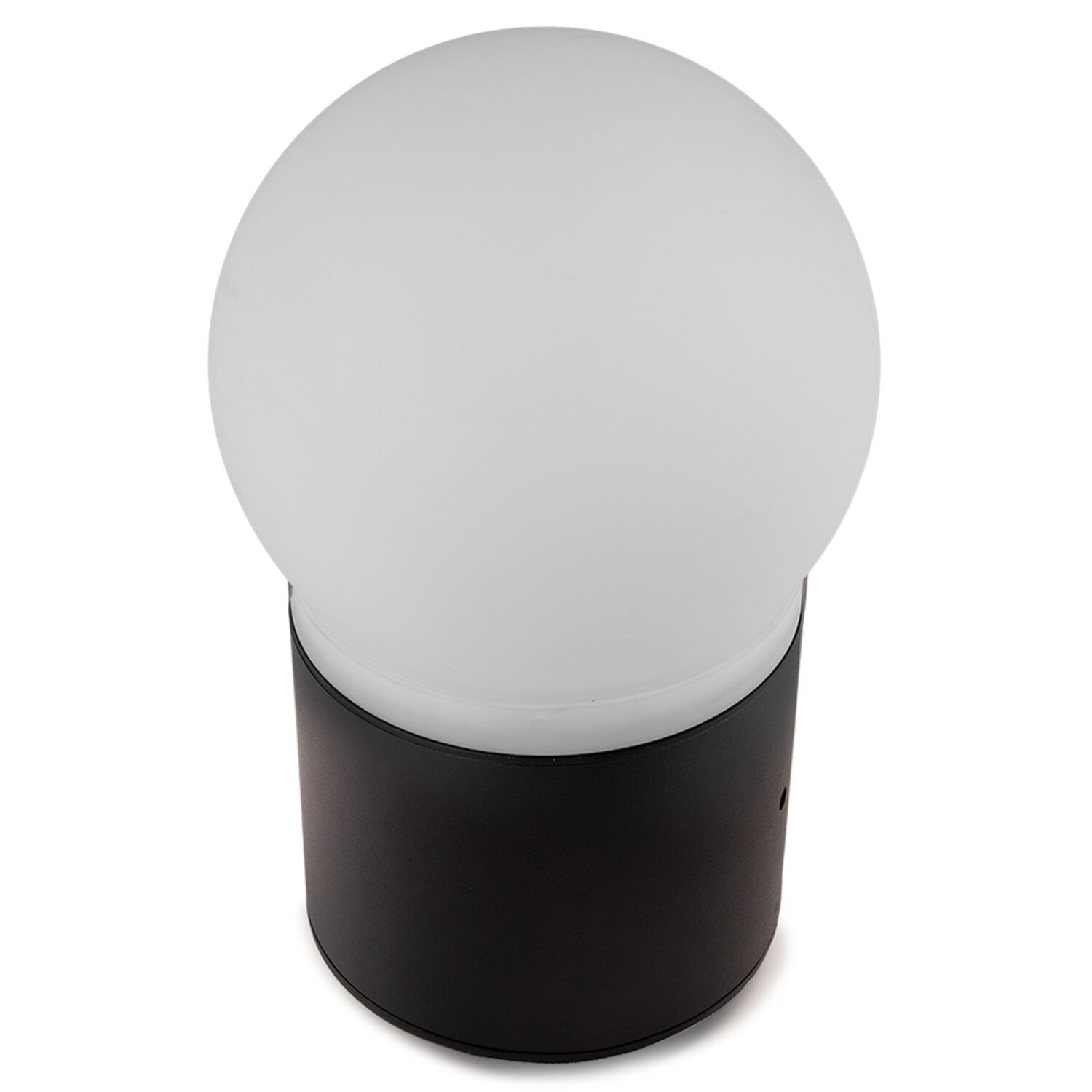

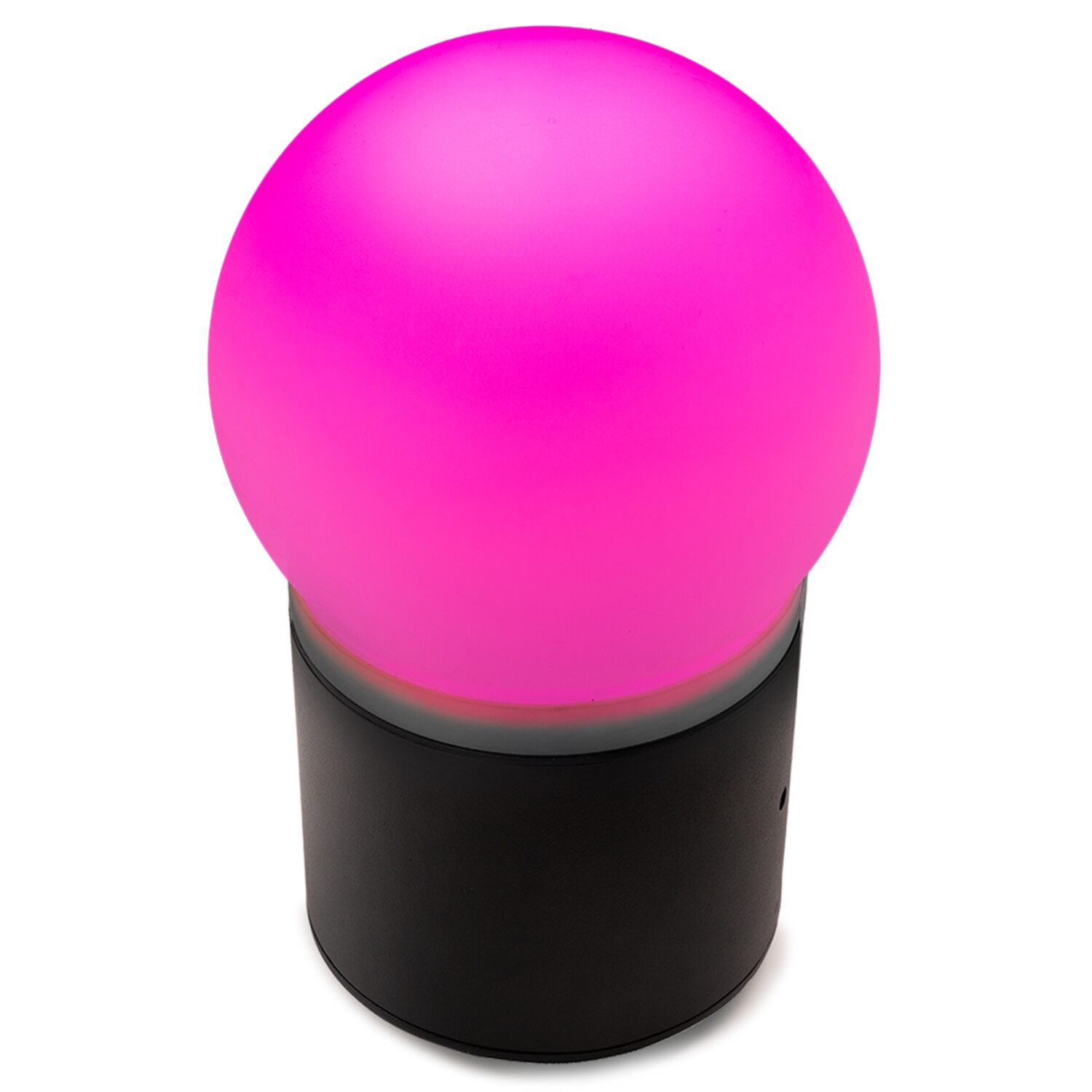

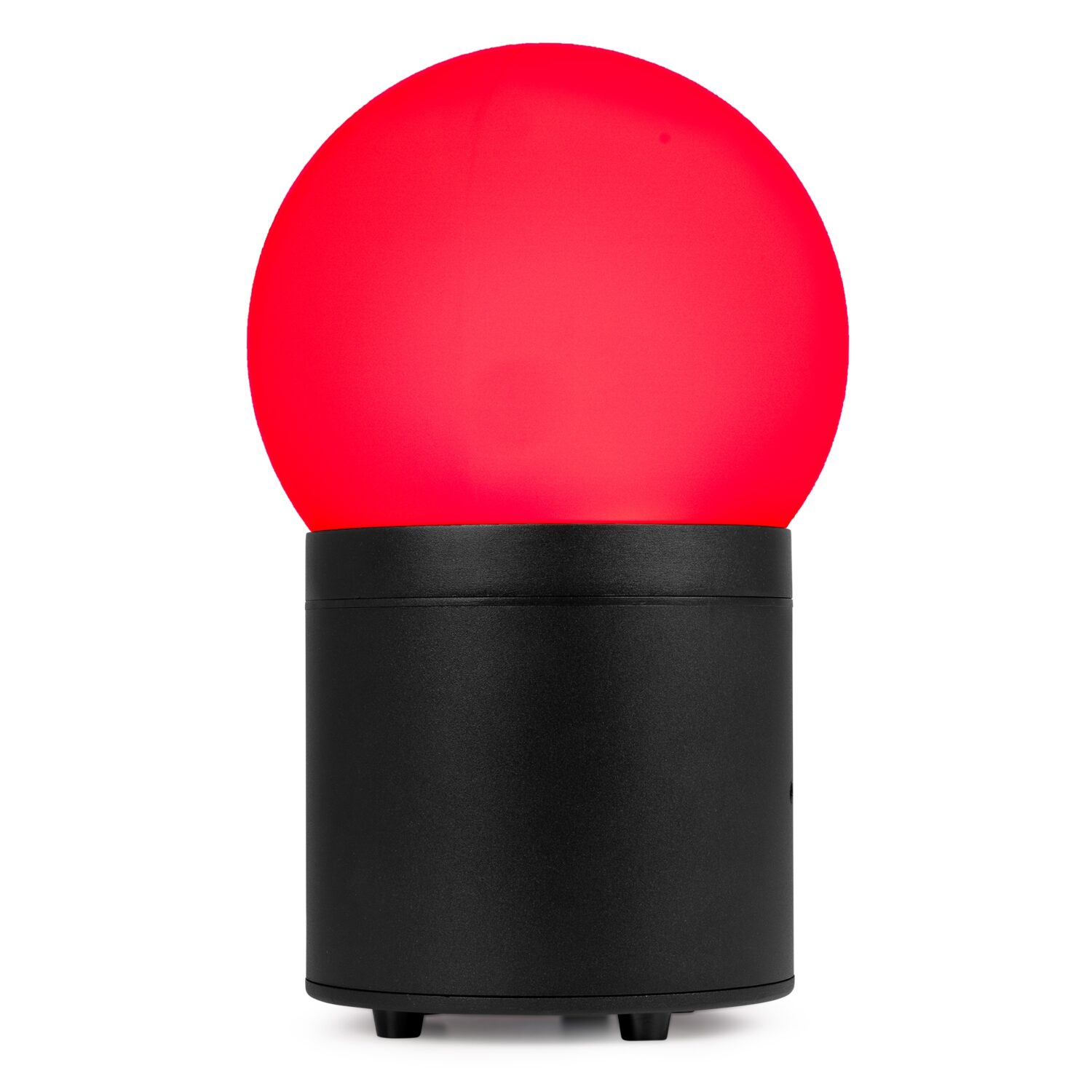

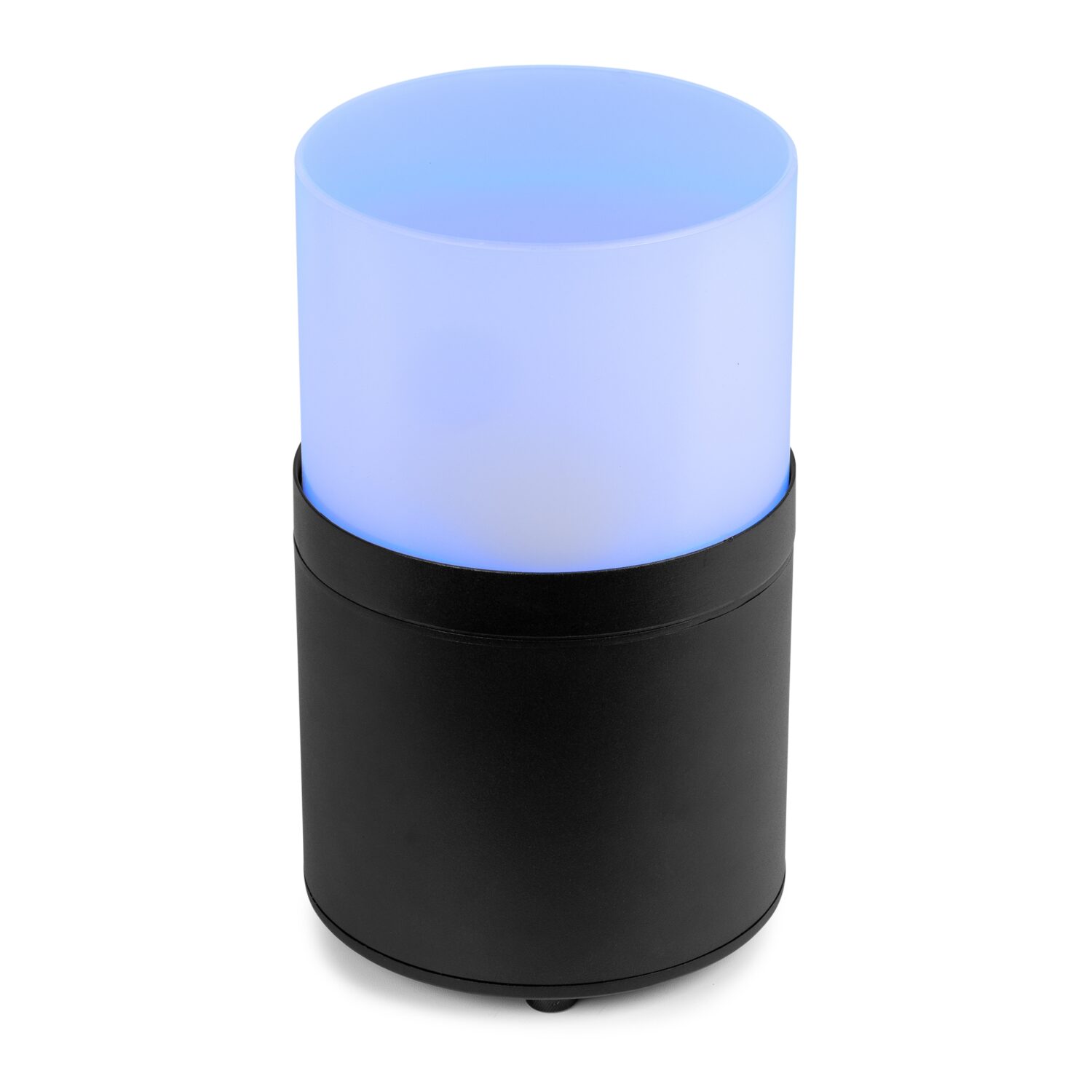

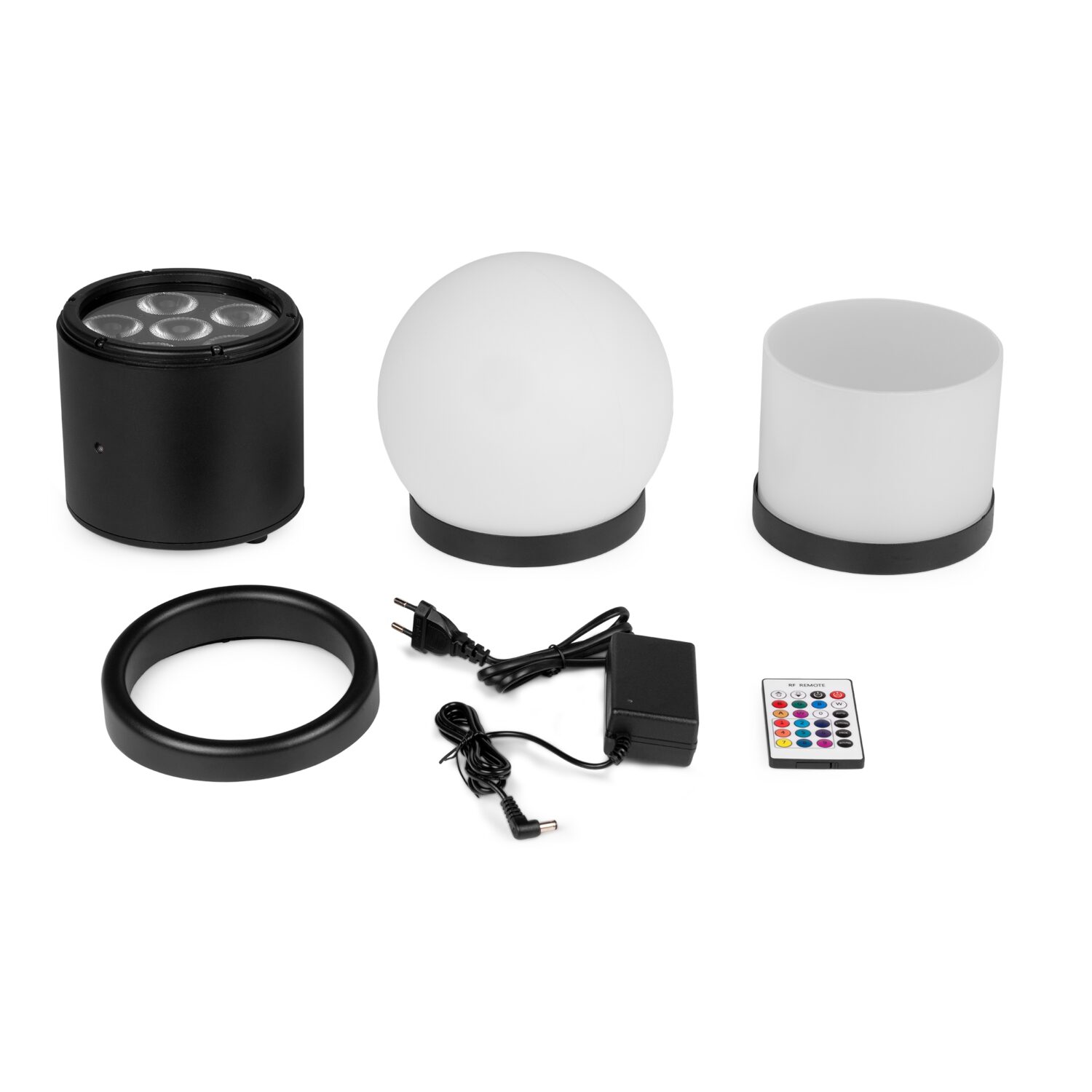

The Helios kit is a set consisting of an indoor/outdoor uplight unit with built-in battery and, in addition to an attachable finishing ring, a number of decorative set up units, including a sphere and a tube effect. These decorative attachments can easily be mounted onto the uplight using a magnetic closure. The uplight is equipped with 6x 15W high efficiency RGBWA-UV LEDs to create a bright, intense and powerful color spectrum, and can be controlled via wireless DMX or via Wi-Fi (App). When fully charged, this uplight can last up to 15 hours (depending on color and intensity), and the charging time is approximately 8 hours. This uplight is silent, as no fan is used.
