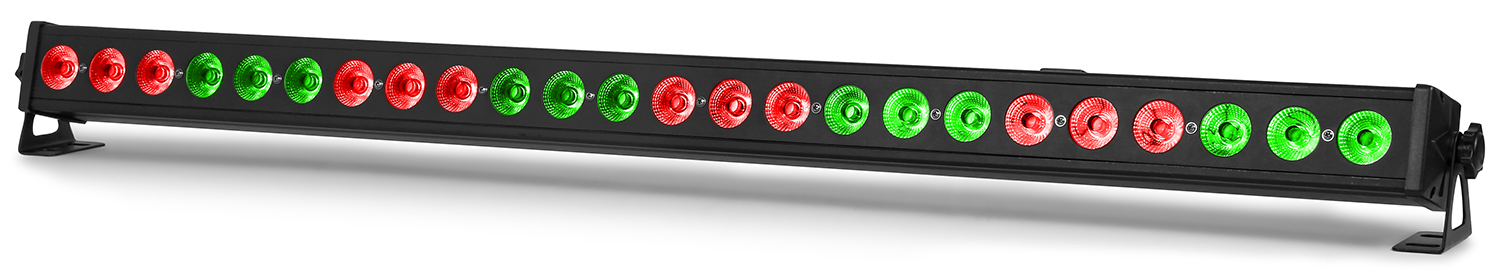

LCB244 LED Bar 24x 4W

beamZ

150.551
  • 24x 4W 4-in-1 LEDs
  • RGBW Colour mixing
  • Colour presets
  • Pre programmed shows
  • Electronic Dimming: 0 – 100%
  • 6, 9, 16, 30 or 58 DMX channels
  • DMX and Stand-alone mode
  • Master/slave function
  • Sound activated with adjustable sensitivity
  • Auto mode with adjustable speed
  • DMX in/output via 3-pin XLR
  • Control panel with LED display
  • Aluminium housing

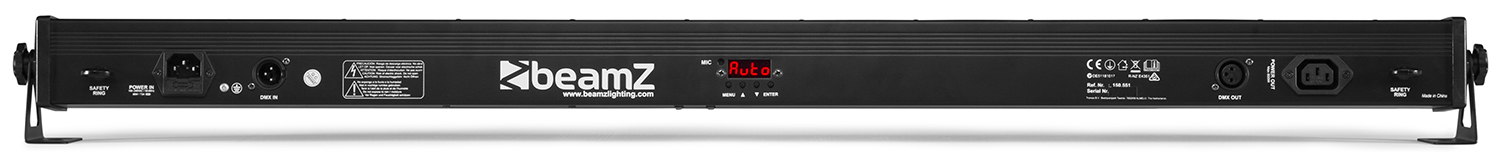

  • IEC-connector input/output
Specifications
Product colour Black
Light source 4-in-1 LED
Colours Red, Green, Blue, White
LED power (single LED) 4W
Quantity of LEDs 24
Beam angle 20
Field angle 33
Illuminance 4430 lx @ 1m
Modes Automatic programs, DMX
DMX channels 6, 9, 16, 30, 58
DMX connection 3-pin XLR
Daisy chain Yes (max. 6 bars)
IP rating IP20
Power plug IEC
Power consumption 160W
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 1020 x 67 x 67mm
Weight (kg) 2.6000

The LCB244 is a LED bar with 4-in-1 RGBW LEDs. The unit is divided in 8 separately controllable sections. While using the fixture in stand-alone mode there are 12 pre-programmed shows that you can run automatically or sound activated, pick from the pre-set colour macros or create your own mixture of colours in RGBW mode. The extra IEC output enables you to simply link the power of multiple units together into a single socket. Convection cooling for noiseless operation!
