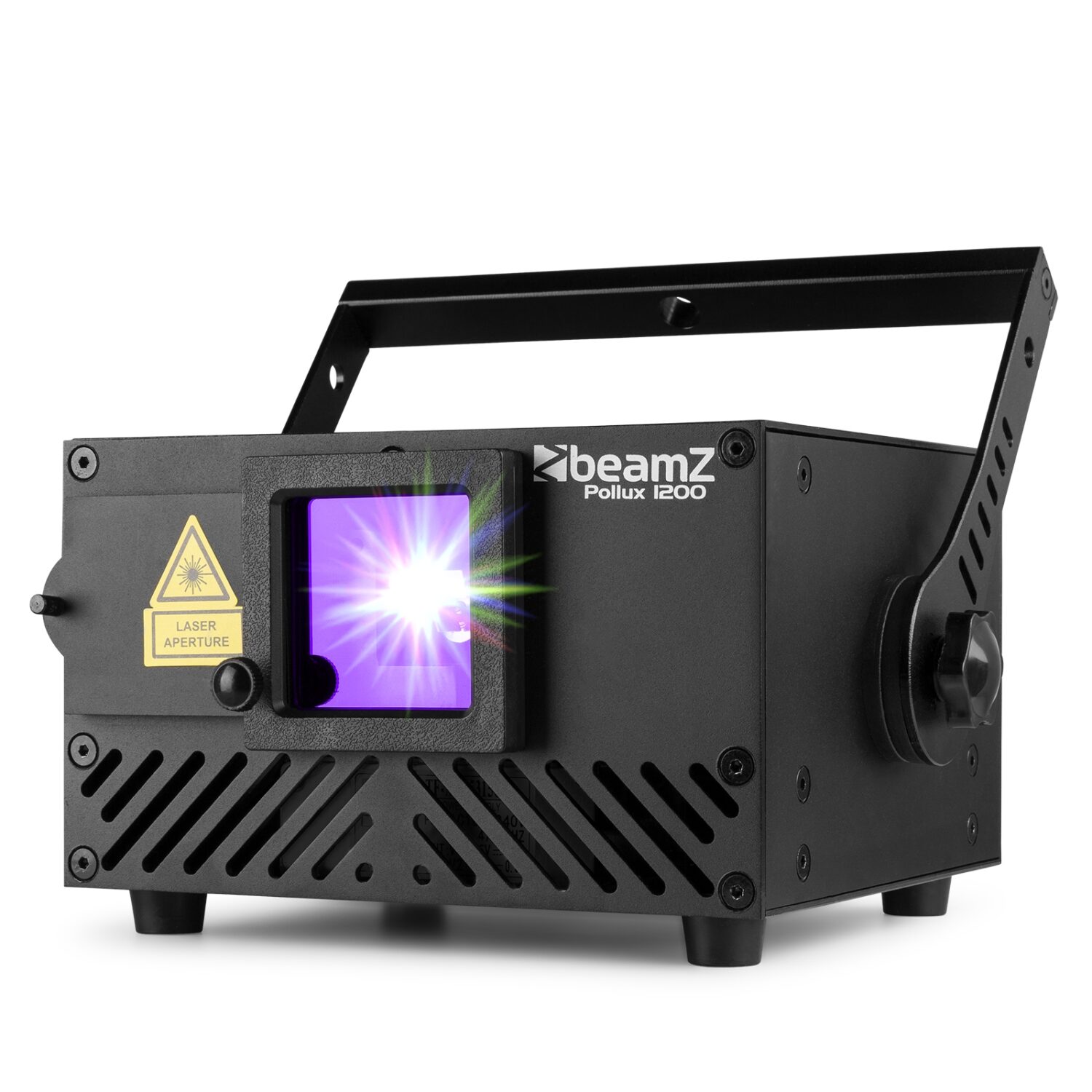

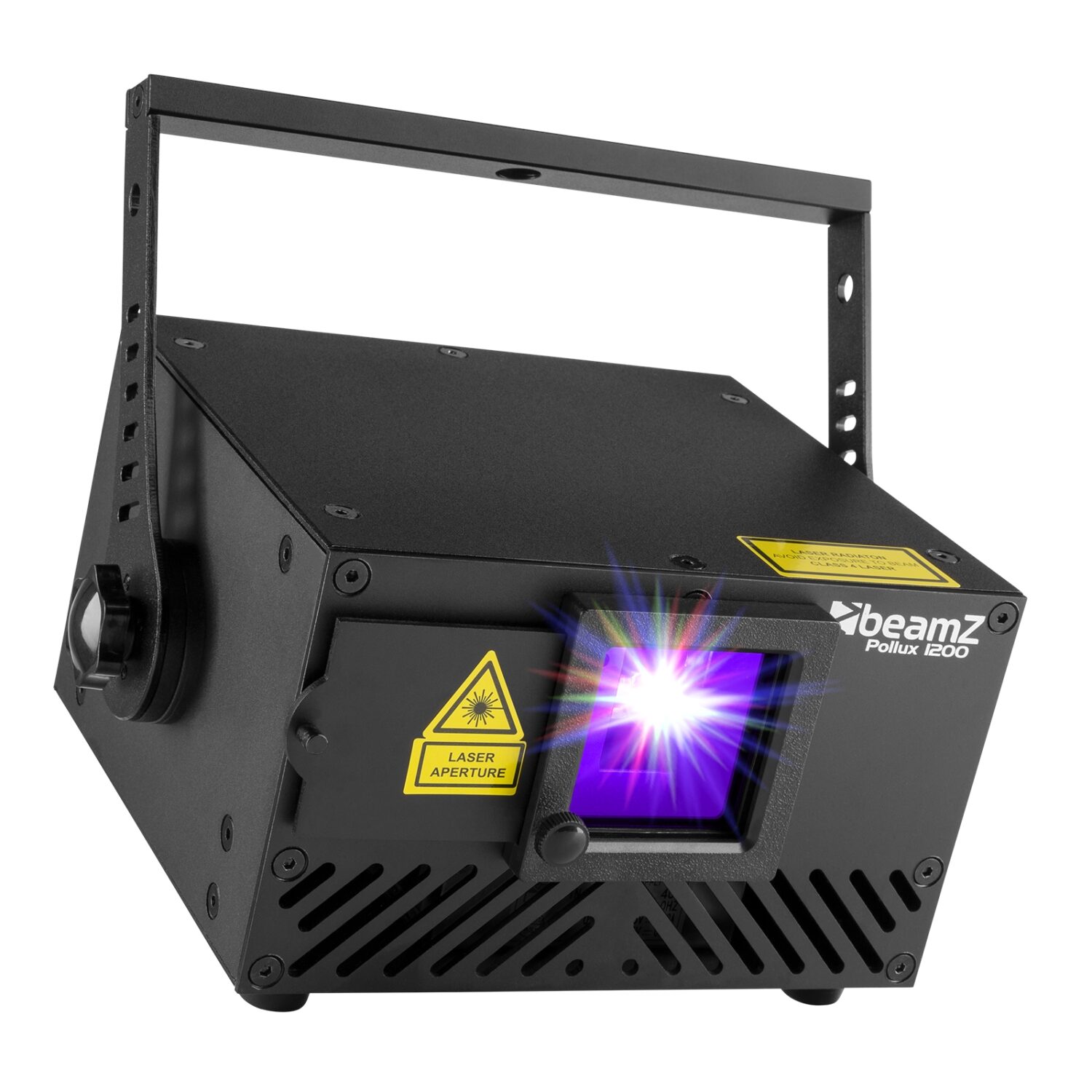

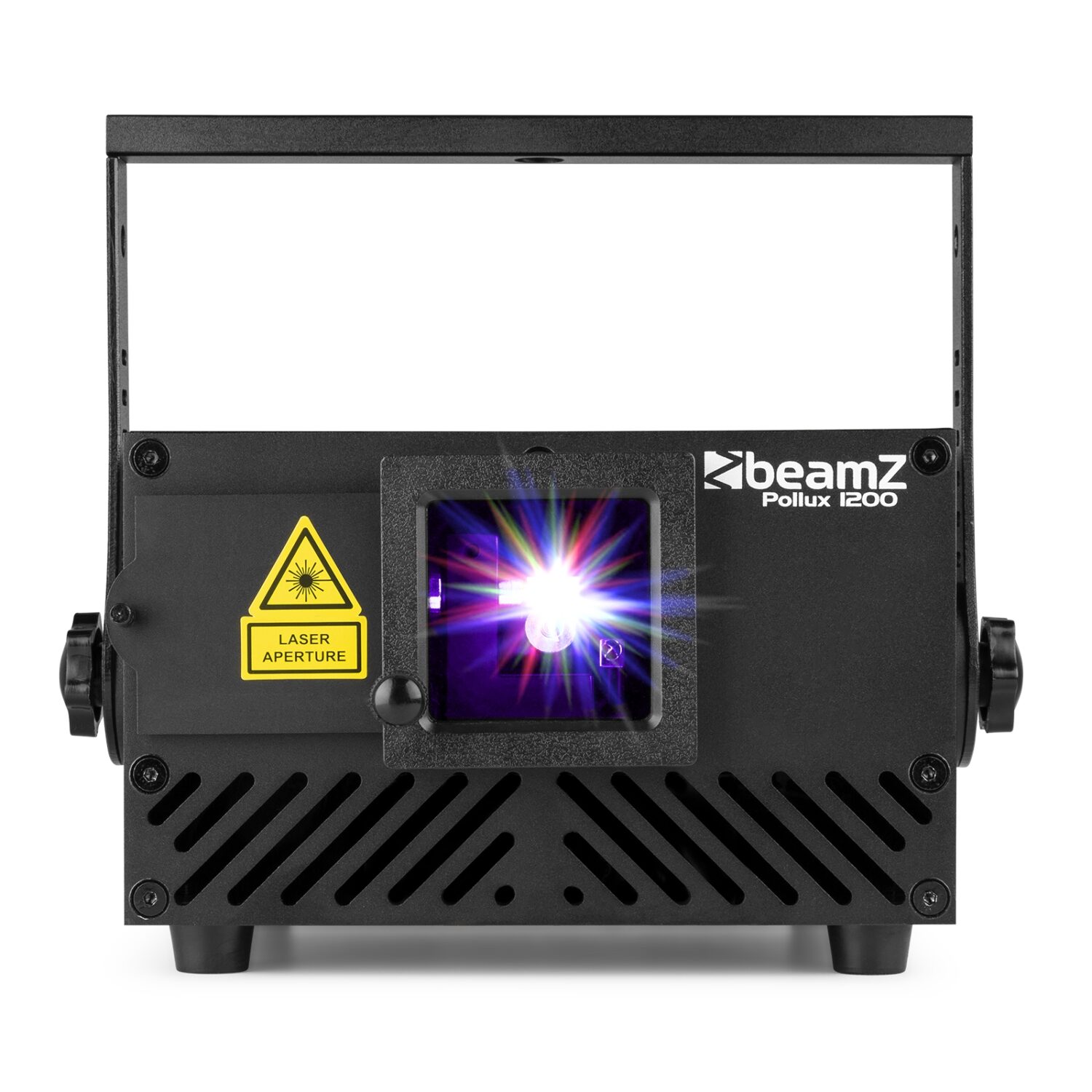

Pollux 1200 TTL Laser System

152.526

Powerful 1,2W TTL animation laser
Red (350mW), Green (150mW) and Blue (700mW) laser modules
15K high speed optical scanner system
DMX and Stand-alone mode
17 DMX channels
Master/slave function
Sound activated with adjustable sensitivity
Auto mode
Preprogrammed patterns and animations
DMX in/output via 3-pin XLR
ILDA in/output
Control panel with LCD display

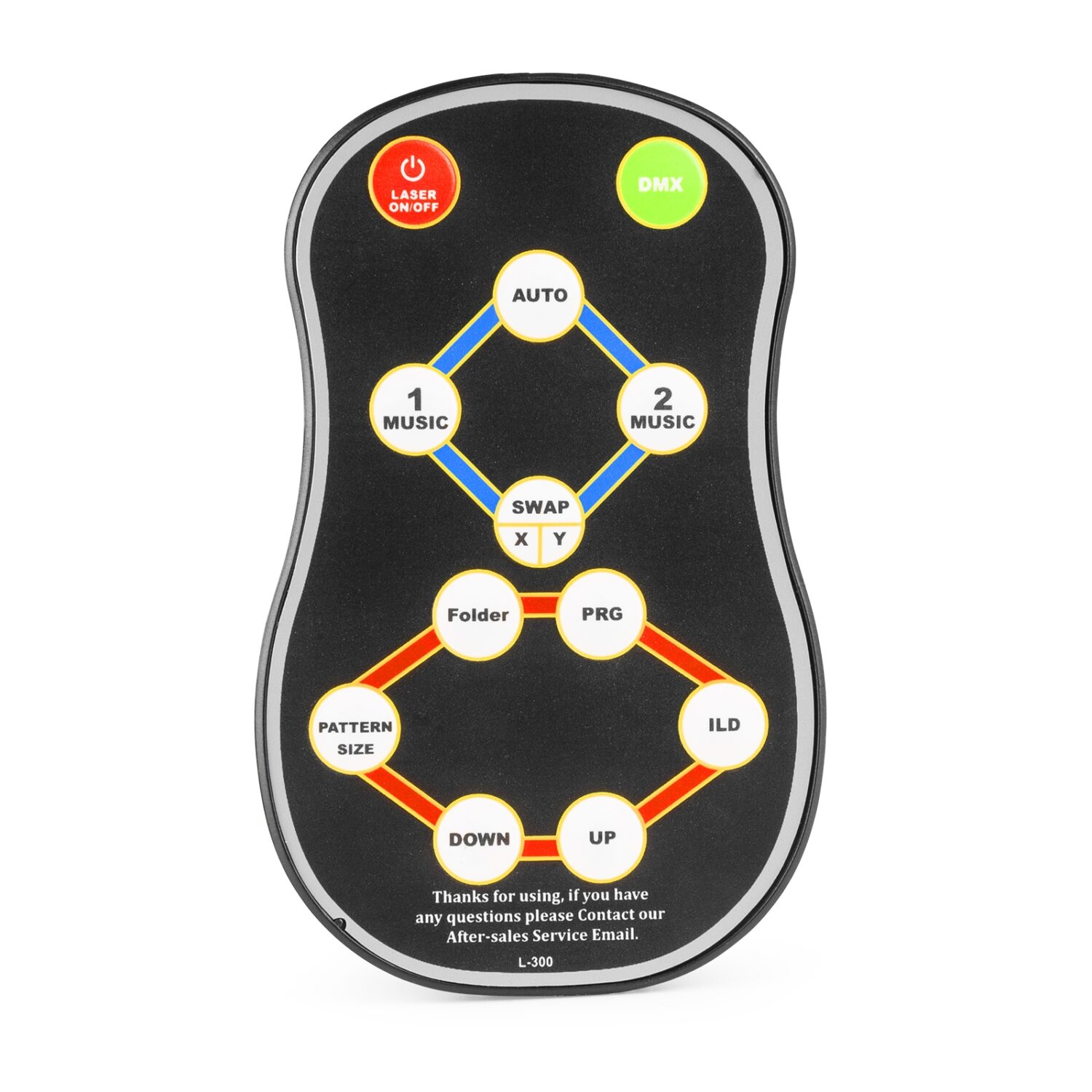

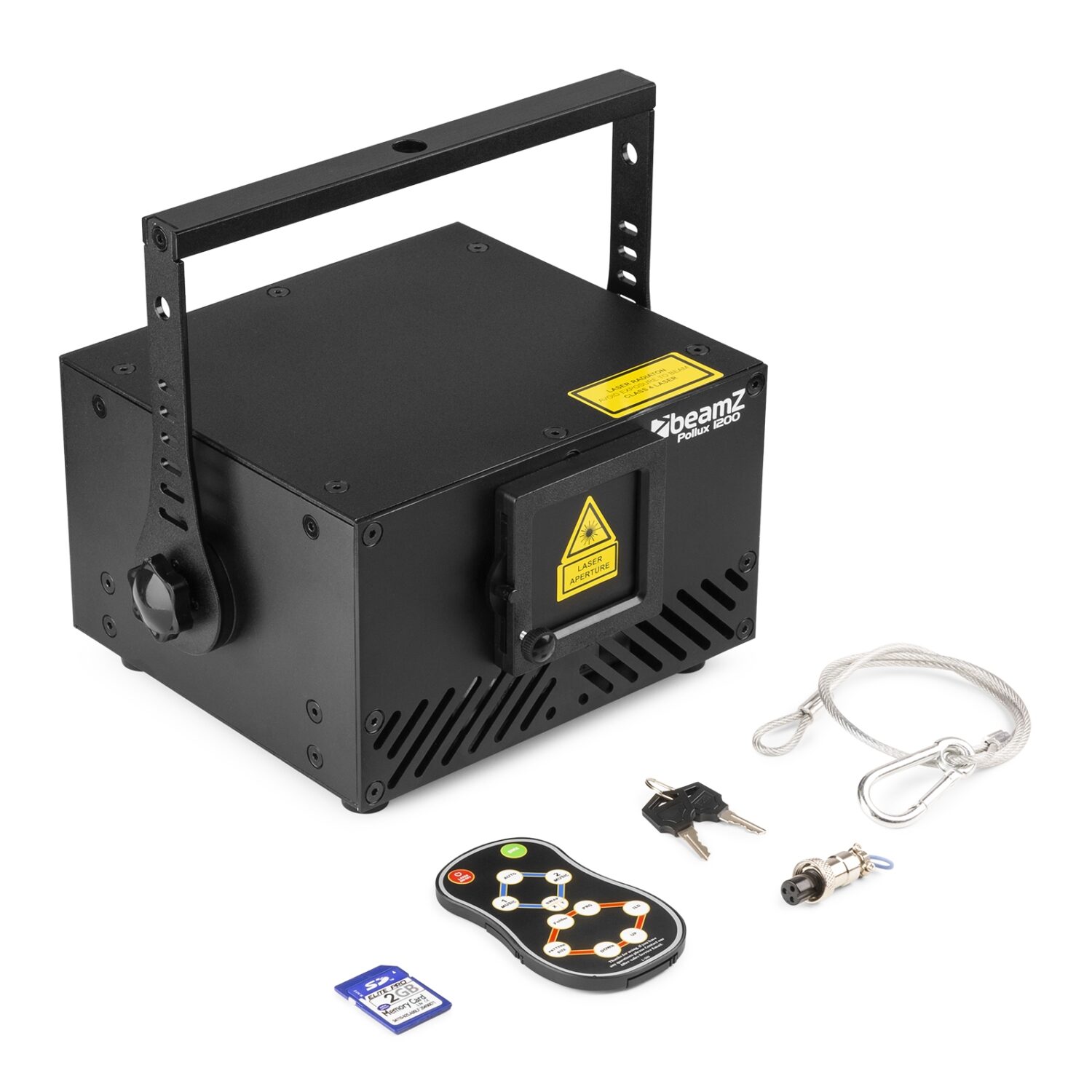

Incl. 2GB SD Card and remote control

Specifications

Specifications
Description
Download & links

Product colour	Black
Input connections	SD
DMX channels	17
DMX connection	3-pin XLR
ILDA	DB25
Laser Red	350mW @ 650nm
Laser Green	150mW @ 532nm
Laser Blue	700mW @ 445nm
Scanner system	15kpps @ 8°
Guaranteed output (99mW)	1000mW
Maximum output (99mW)	1200mW
Power consumption	0.4 - 0.2A
Power supply	100-240VAC 50/60Hz
Dimensions (L x W x H)	215 x 215 x 191 mm
Weight (kg)	2.5000

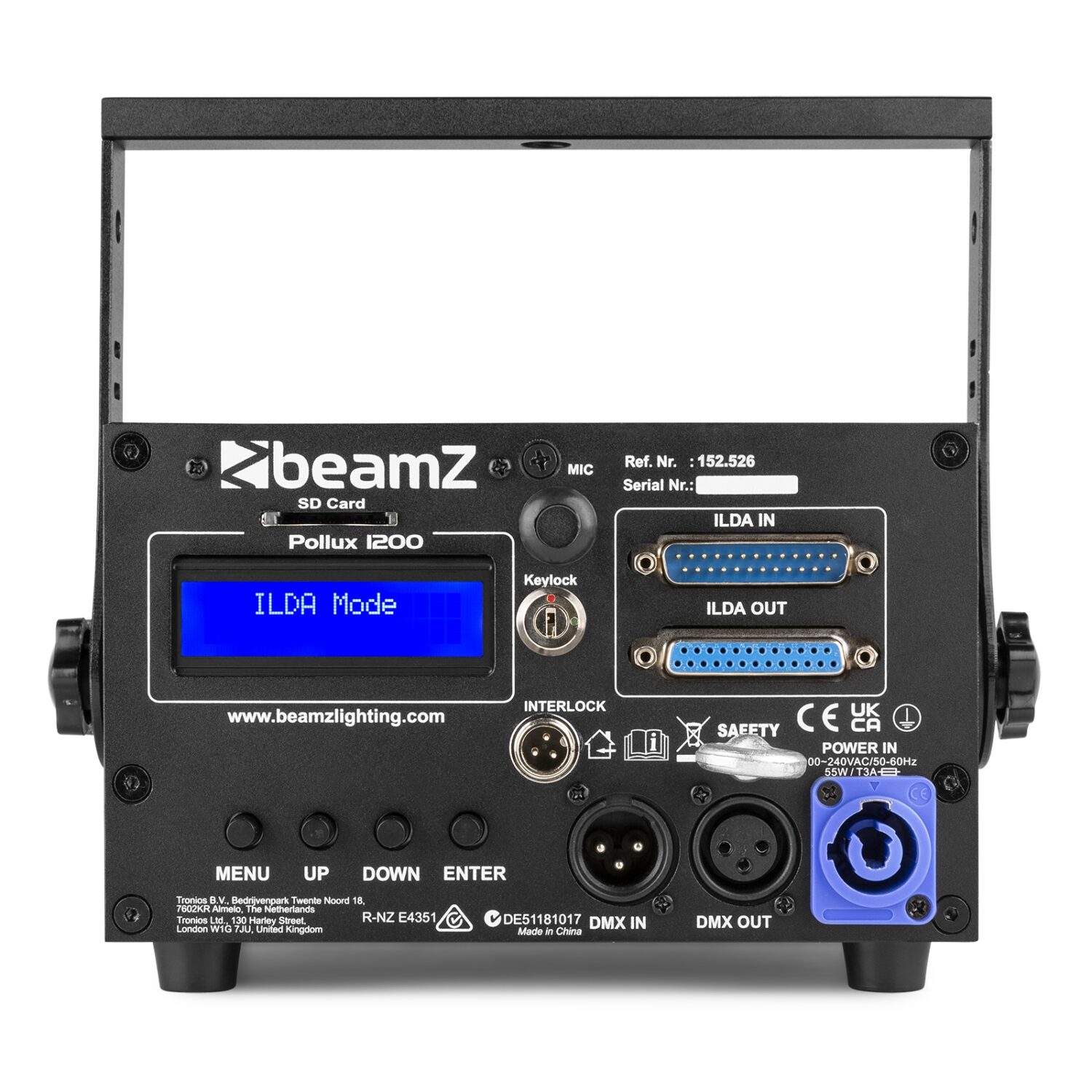

The Pollux is a DMX Super animation laser with over hundred incorporated effects on the enclosed SD card. The Pollux 1200 TTL features a TTL (transistor-transistor-logic) modulation. This basically allows you can create 7 colours at their full intensity thanks to the RGB mixing capabilities. On the back you will find a DMX in/output with 3-pin XLR and an ILDA in/out connection. An ILDA connector is the standard connector for show laser lights that connect the laser display with an ILDA cable to the laser control device. When using a DMX controller the Pollux laser offers 17 DMX channels in DMX mode. It’s also possible to set the Pollux 1200 TTL into a sound-activated mode with the built-in microphone on the back of the laser. Including a 2GB SD card and remote control.
